4" 1A1 Diamond Grinding Wheel 270 Grit | Hybrid Bond 1-1/4" Bore | Carbide End Mills & Drills

Premium diamond grinding wheel type 1A1, designed for the production and resharpening of carbide rotary cutting tools including end mills, drills, and carbide burrs on CNC tool grinding machines.

Specifications:

• Wheel Type: 1A1
• Diameter (D): 100mm (4")
• Diamond Layer Thickness (T): 16mm (0.630")
• Diamond Layer Height (X): 10mm (0.394")
• Bore: 31.75mm (1¼")
• Grit Size: FEPA D64 – 270 Grit
• Bond Type: Hybrid Bond
• Quality Line: Premium HPD01

Bond:

The hybrid bond combines the advantages of both resin and metal bond — delivering the free-cutting action and fine surface finish of a resin bond with the durability and form retention of a metal bond. The result is longer wheel life, consistent performance, and reduced dressing frequency compared to standard resin bond wheels.

Compatibility:

Fits ANCA, Rollomatic, Walter, and similar CNC tool grinders with 31.75mm (1¼") spindle arbor. Please verify your machine spindle configuration before ordering.

Coolant:

Oil-based coolant required.

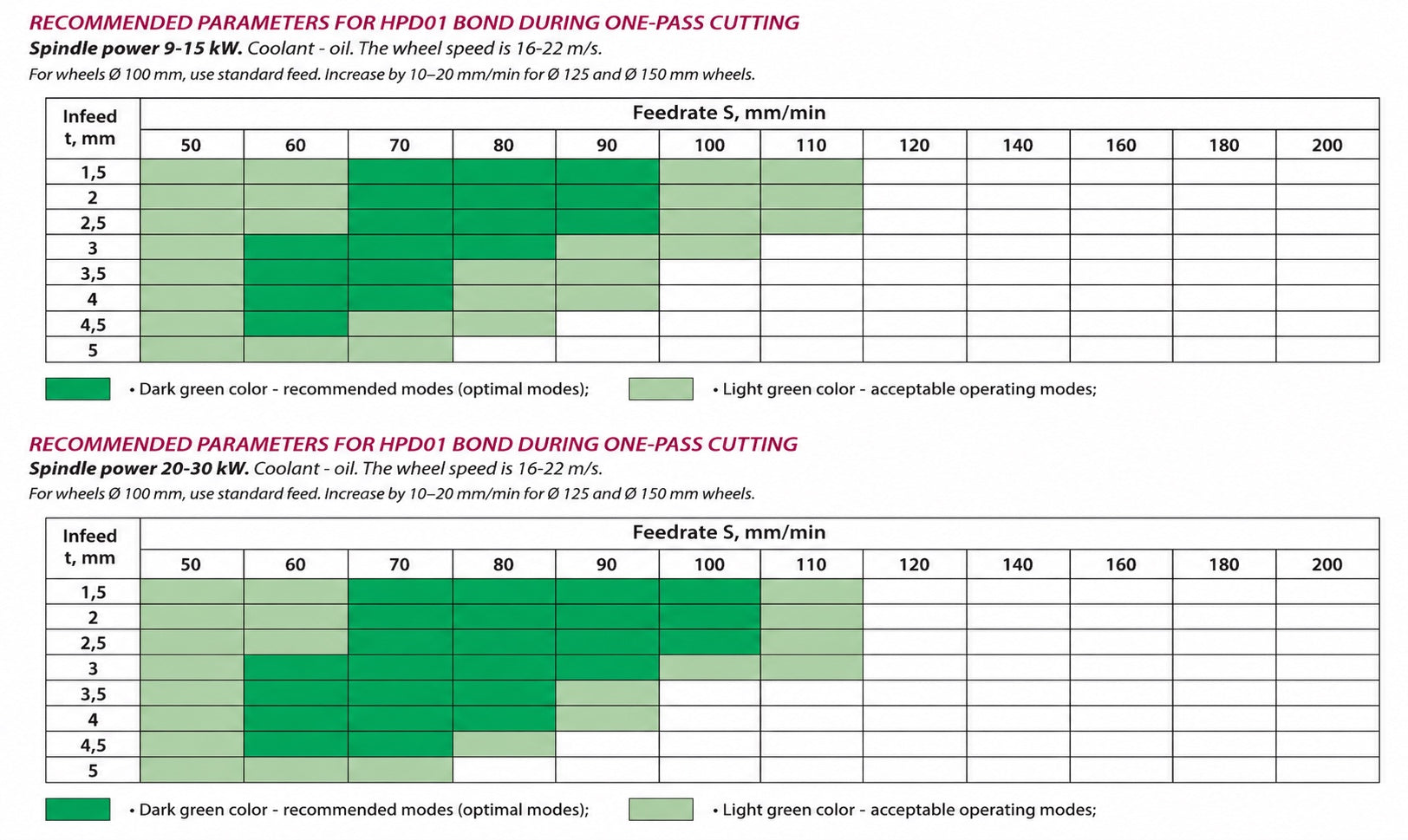

Recommended Parameters for HPD01 Bond During One-Pass Cutting

In stock, ships fast from the US.
