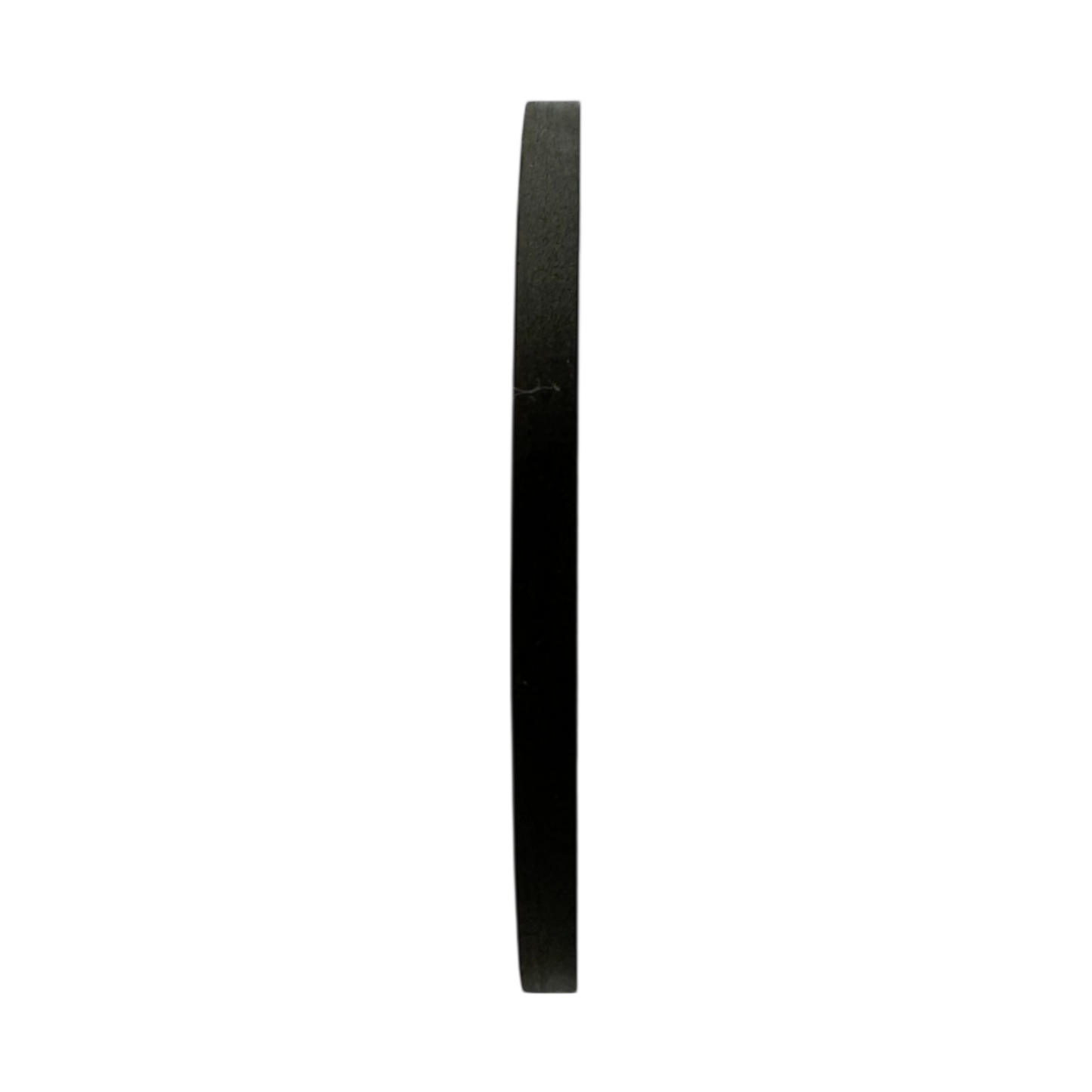

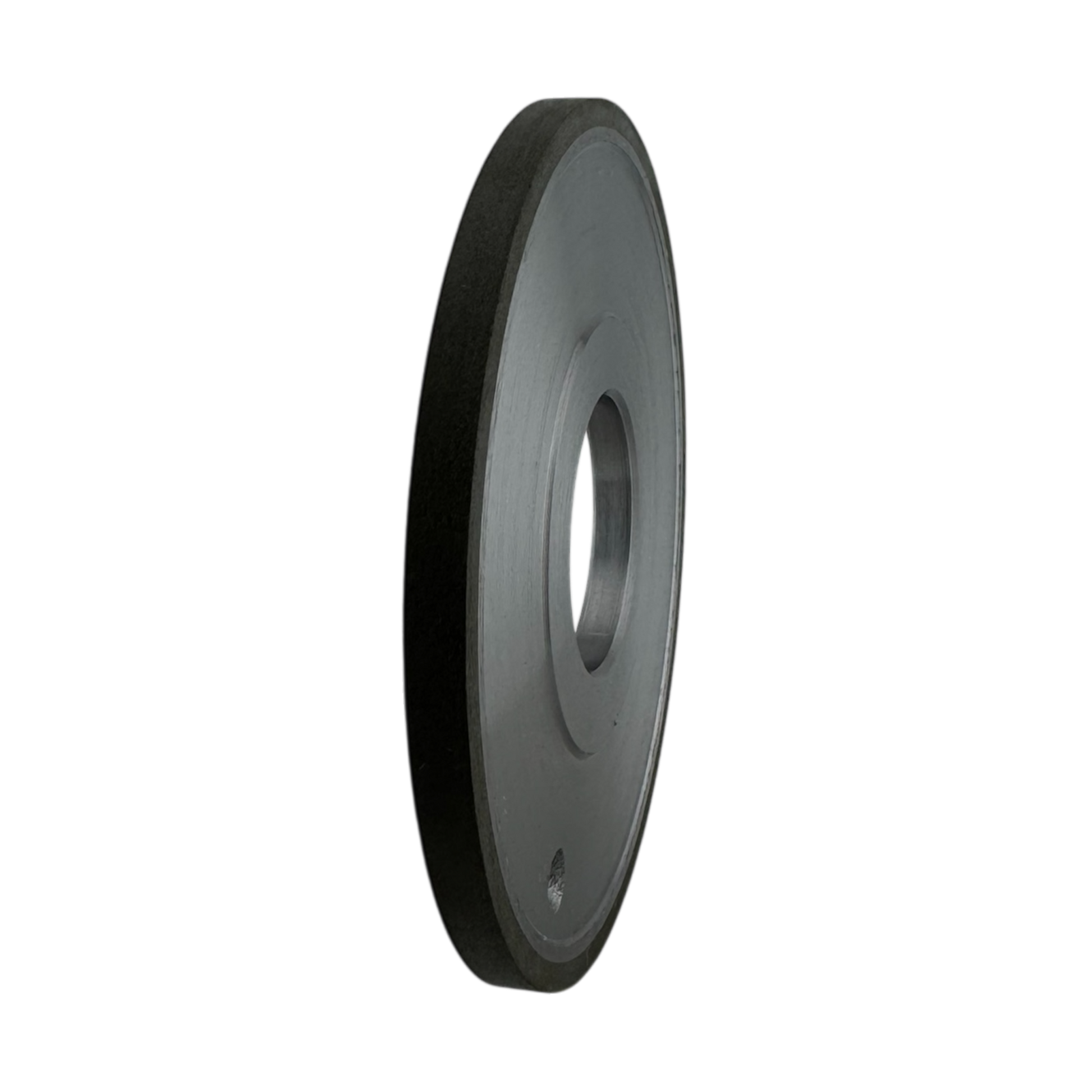

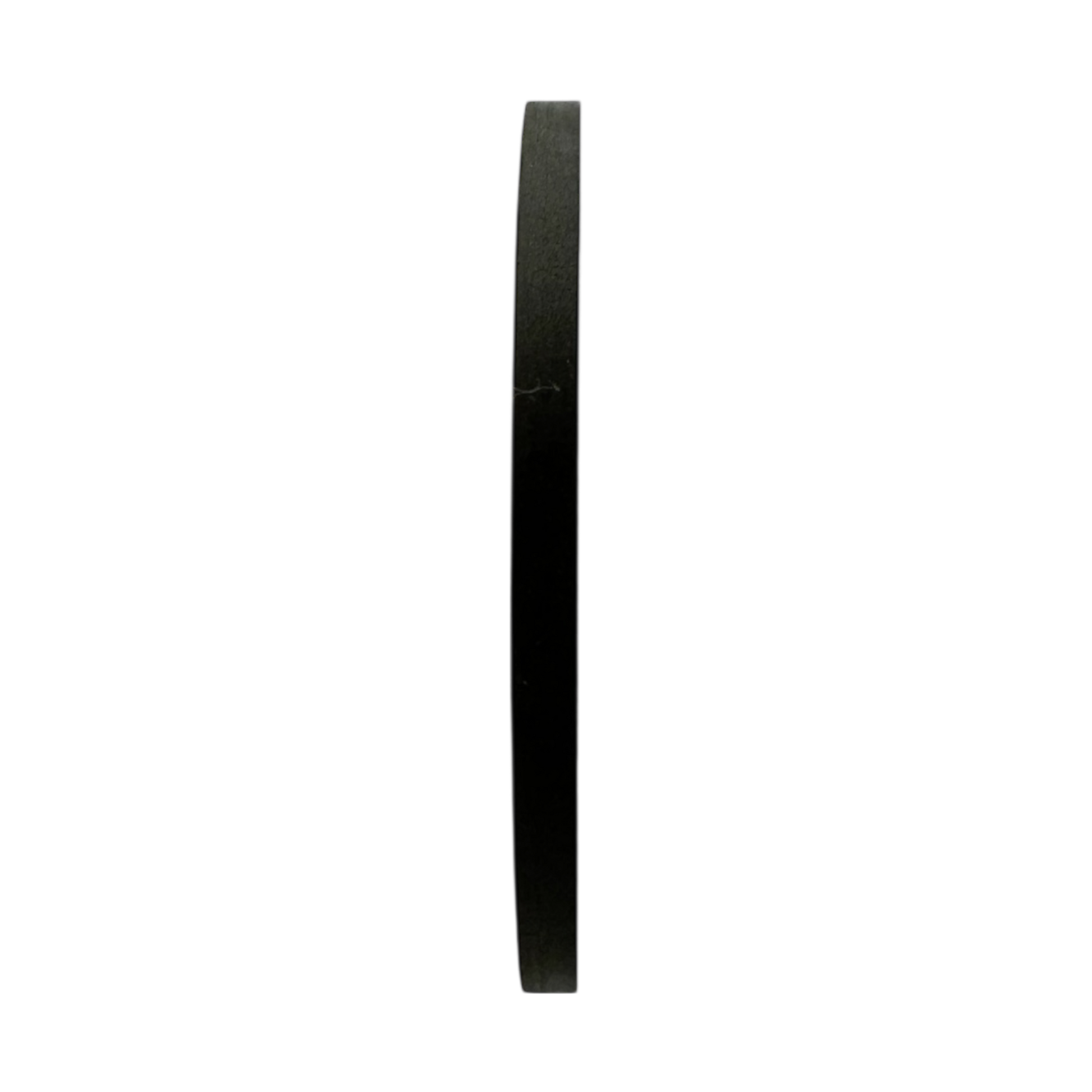

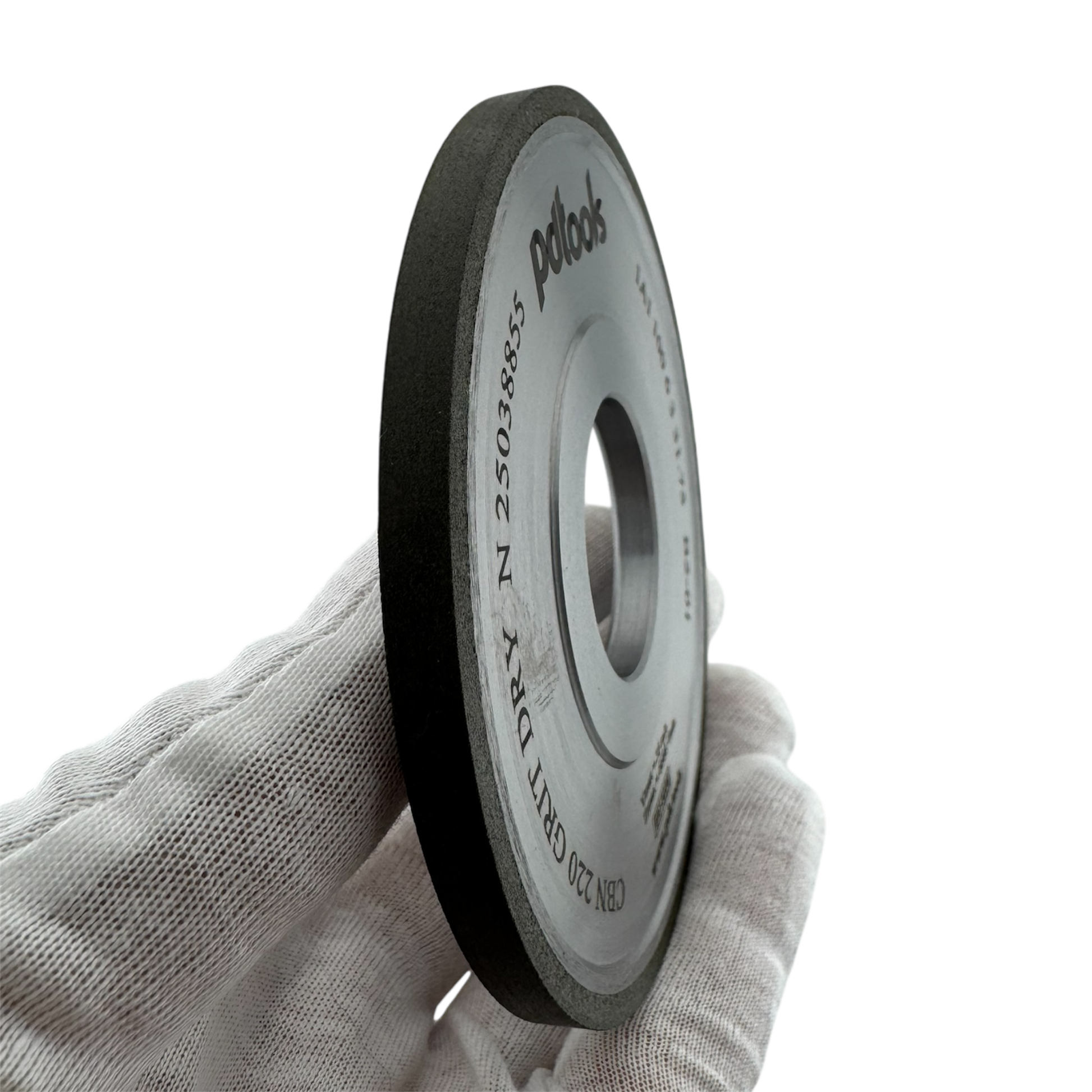

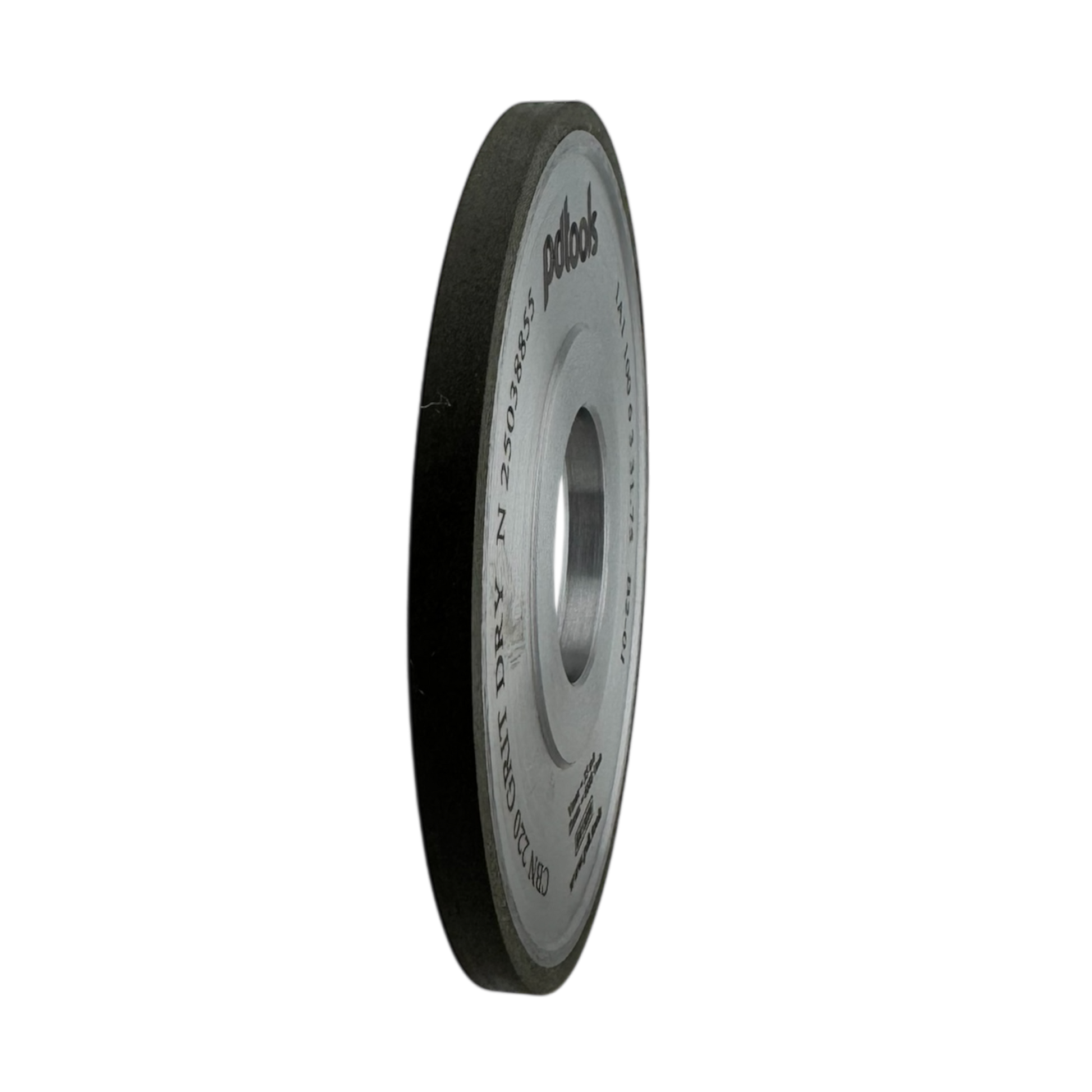

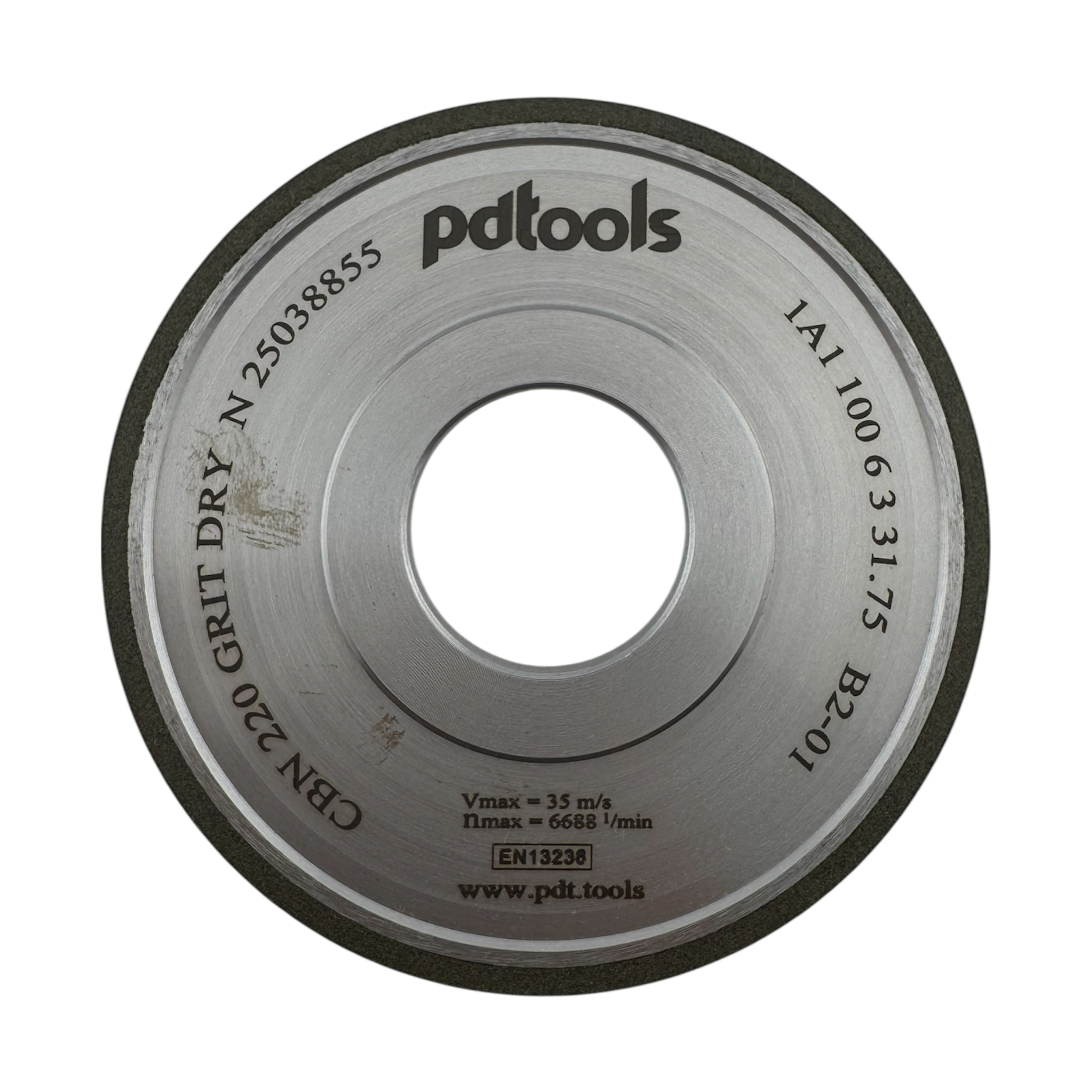

CBN Grinding Wheel 1A1 100-6-3-31.75 220 Grit STANDARD B2-01

CBN grinding wheel 1A1.

Specifications:

Diameter (D): 100mm(4'')

Thickness of diamond layer (T): 6mm(0.236'')

Height of diamond layer (X): 3mm(0.118'')

Mounting hole (H): 31.75mm(1 1/4'')

Grit size: B76 - 220 Grit

Bond: Resin bond

Coolant: Not necessary

Quality line: STANDARD
