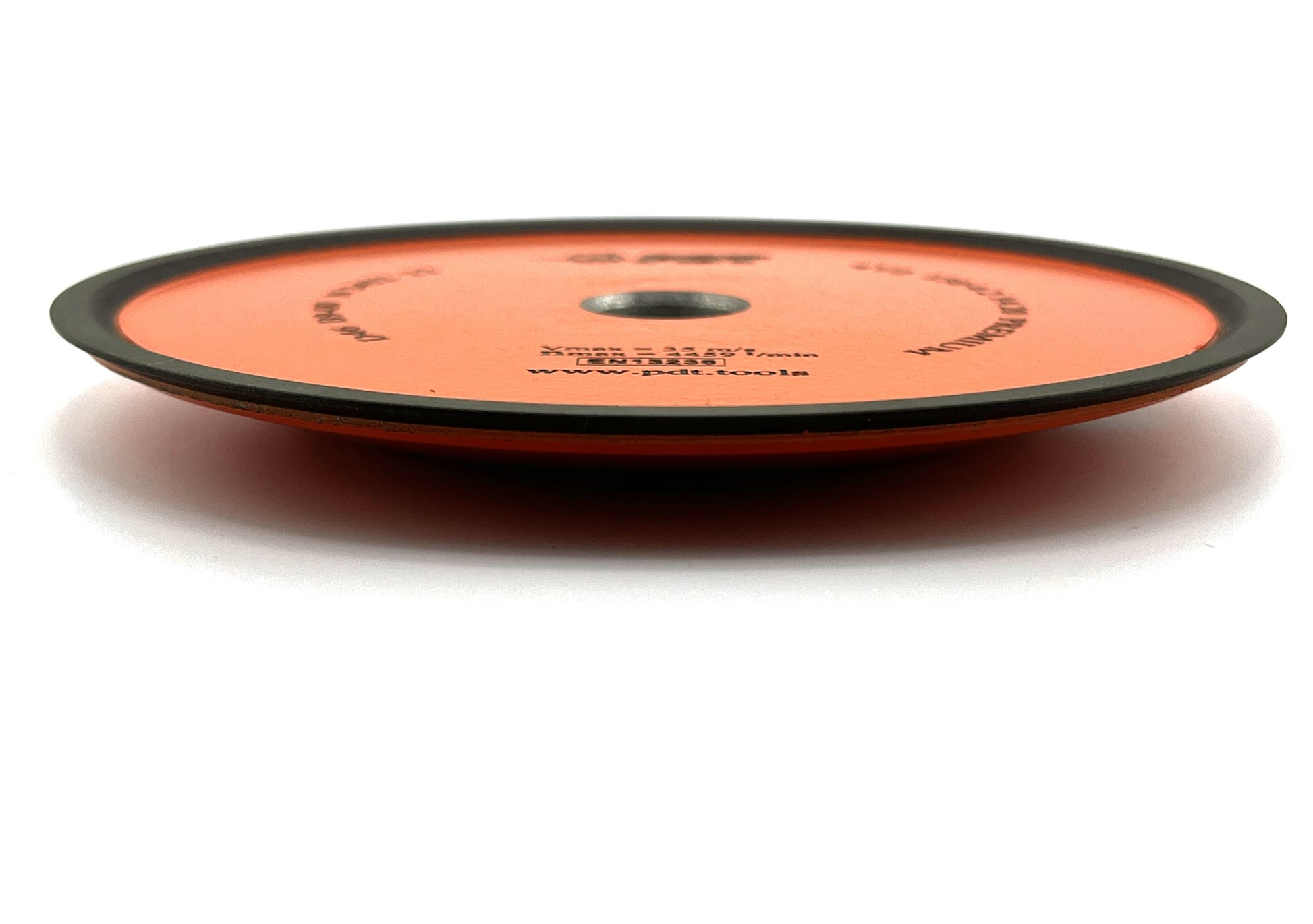

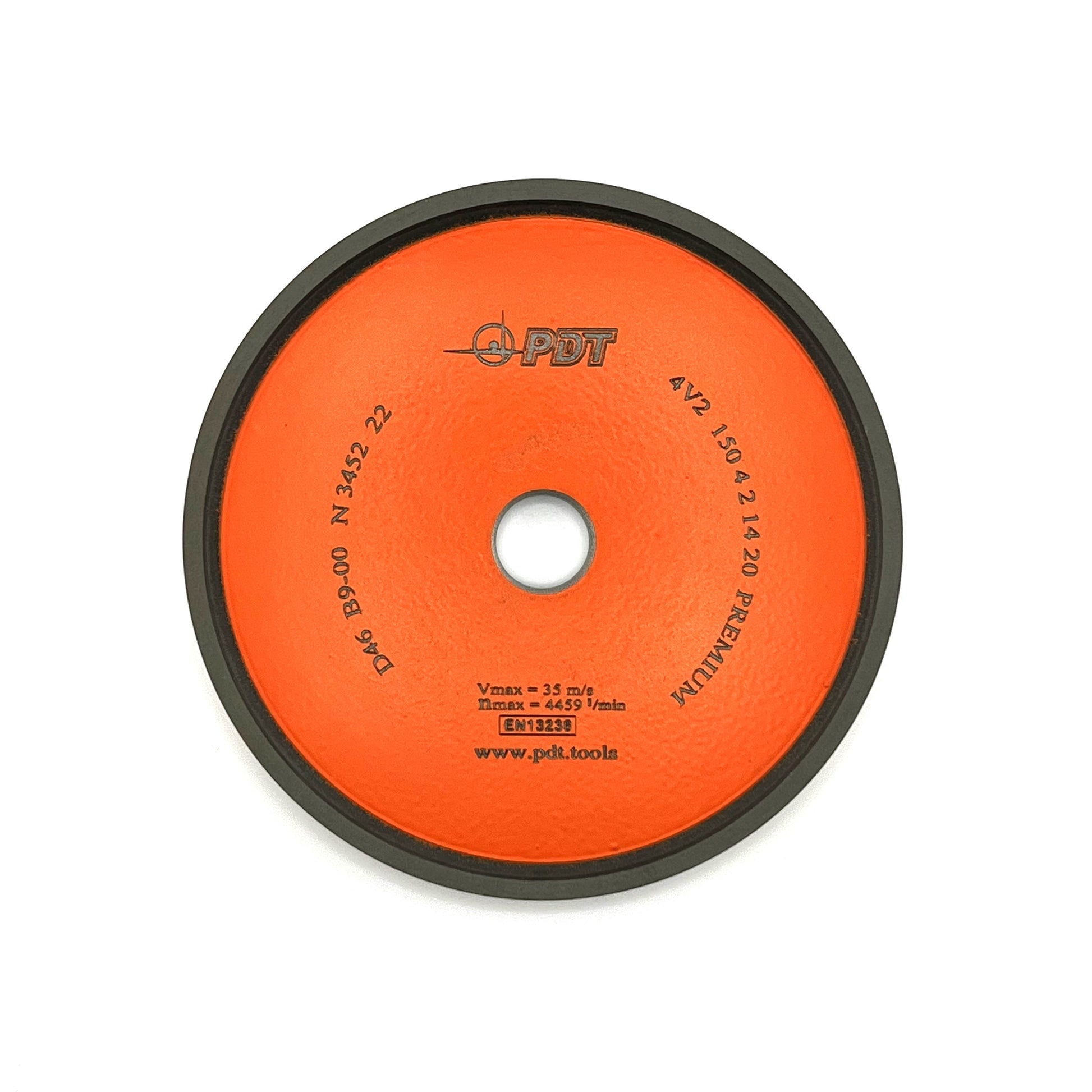

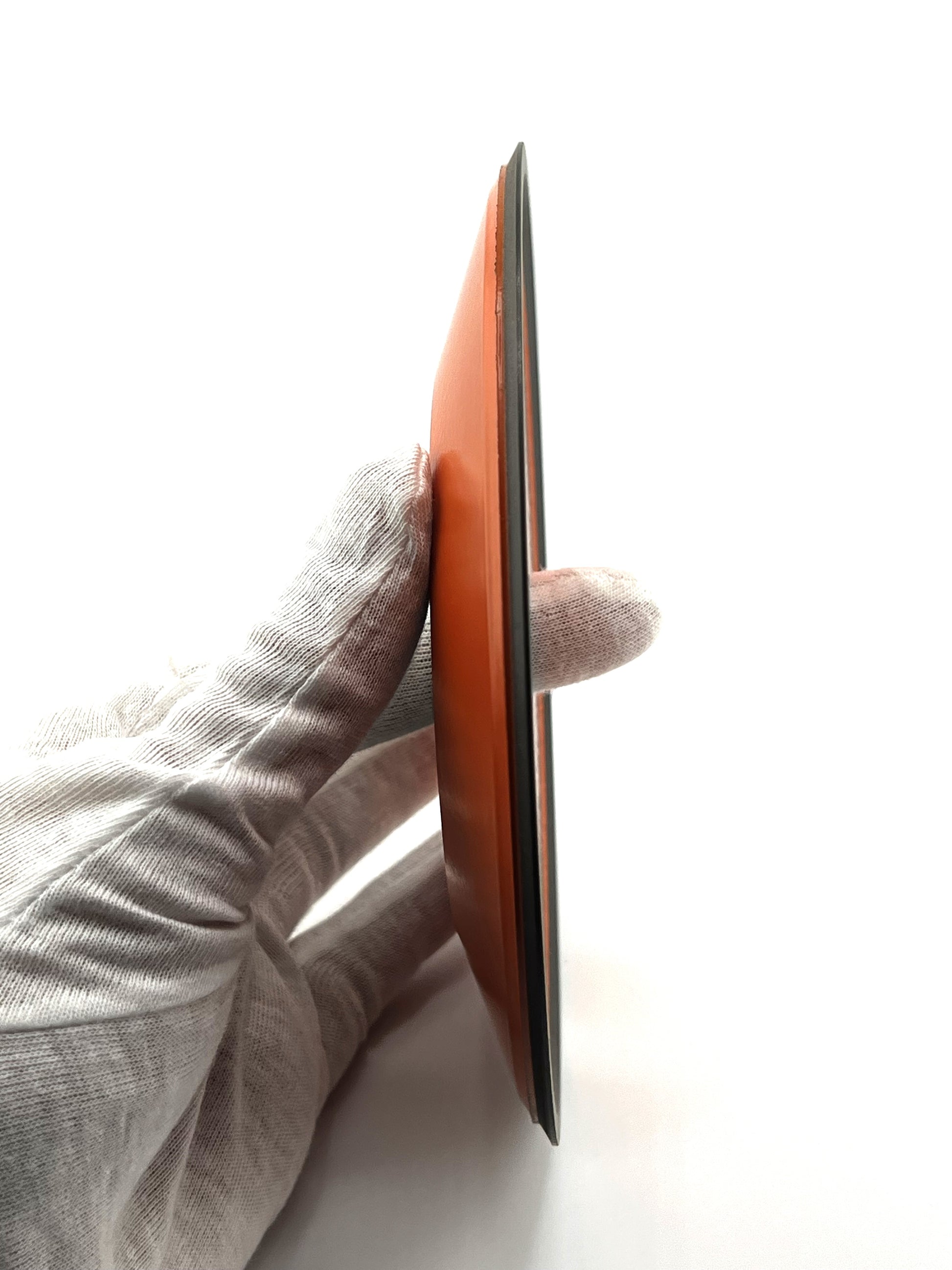

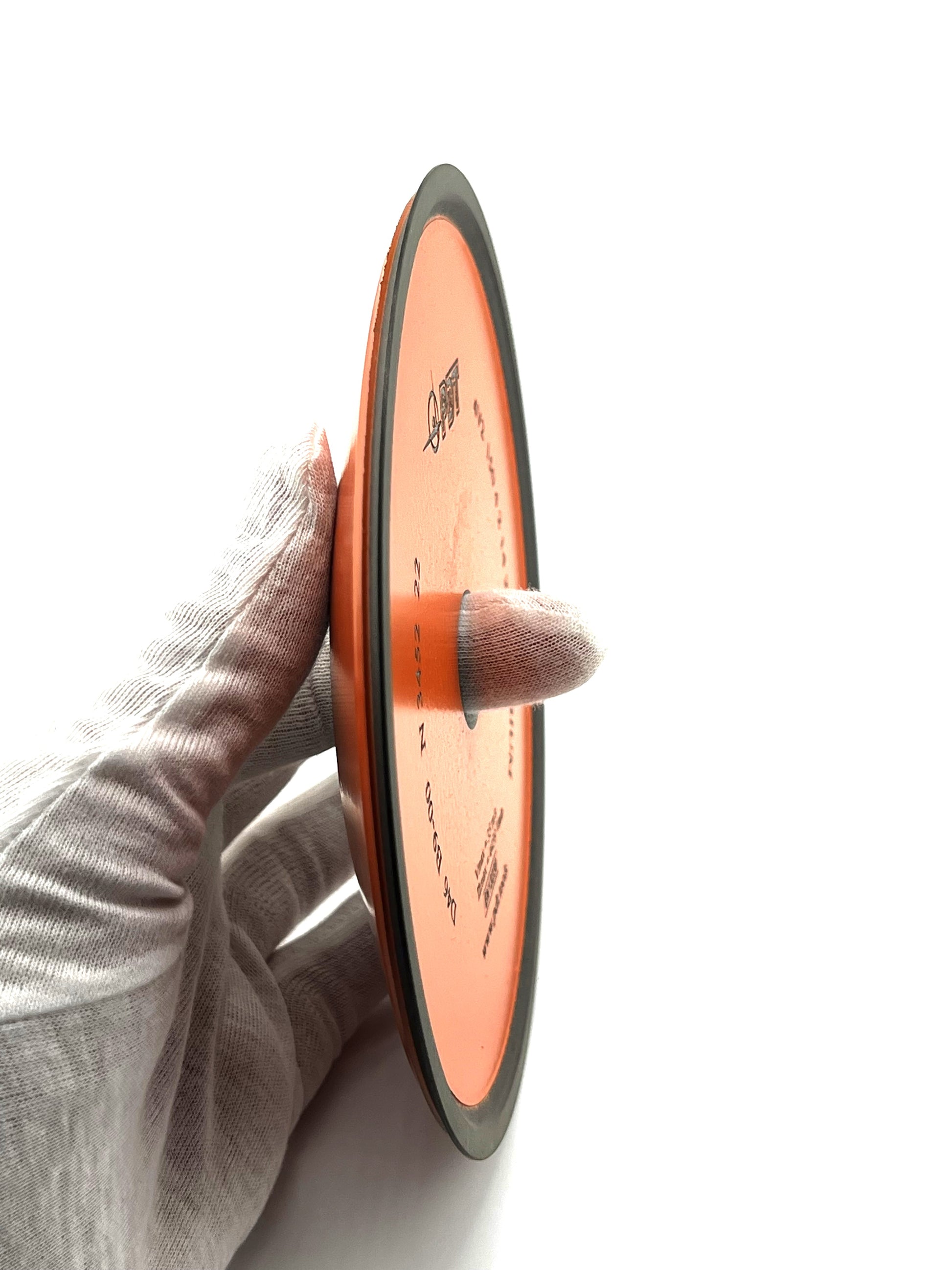

Diamond grinding wheel 4V2 150-4-2-14-20 D46 PREMIUM B9-00

Diamond grinding wheel 4V2 for face and backside grinding of circular saws with carbide tips.

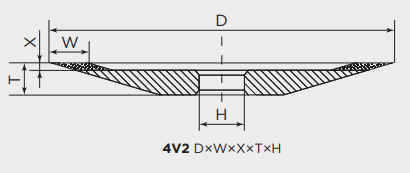

Specifications:

Diameter (D): 150mm(6'')

Width of diamond layer (W): 4mm(0.157'')

Height of diamond layer (X): 2mm(0.079'')

Height of the wheel (T):14mm(0.551'')

Mounting hole (H):- 20mm(0.787'')

Grit size: D46 - 400 Grit

Bond: Resin bond

Coolant: Oil-based coolant required, water-based coolant is permissible.

Quality line: PREMIUM
