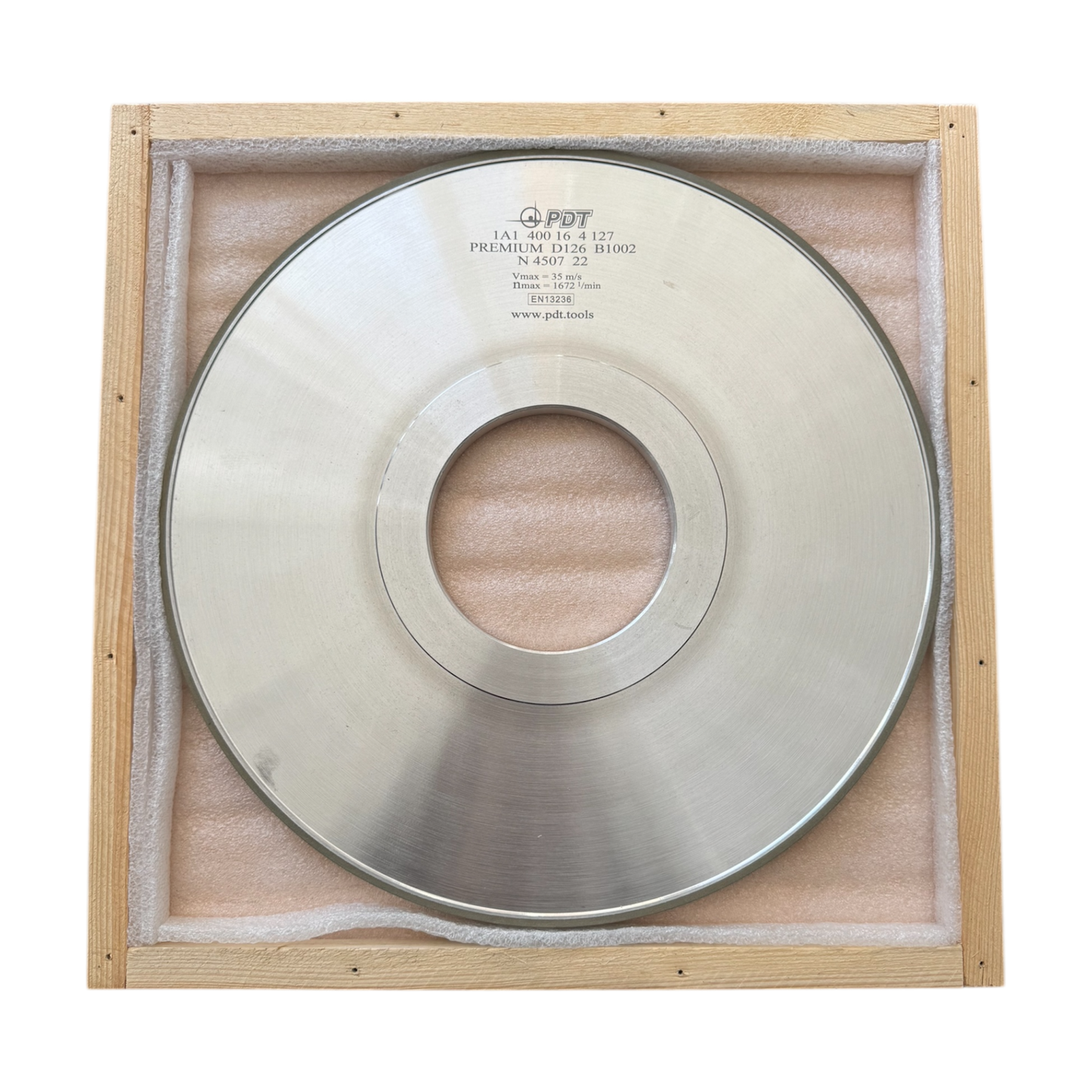

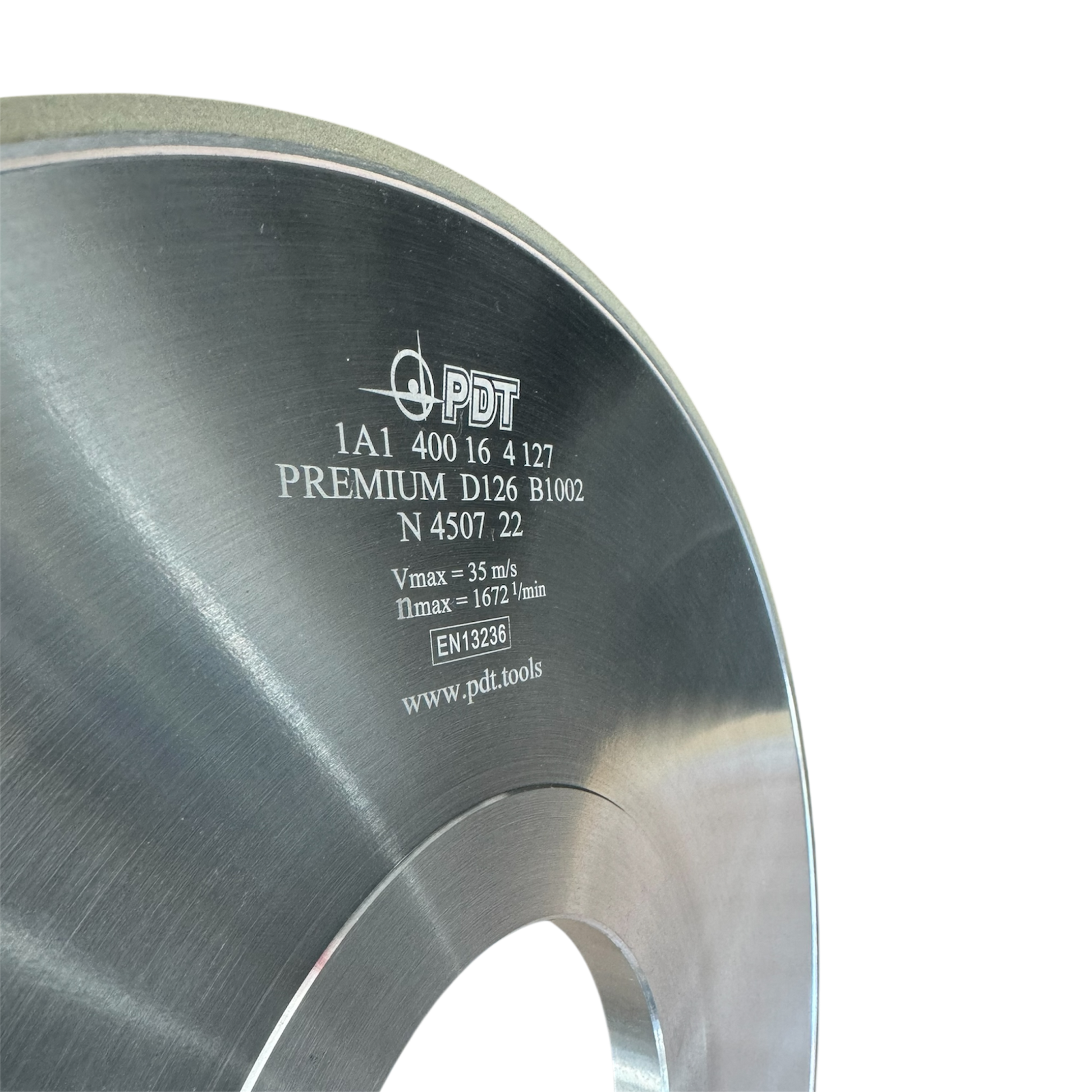

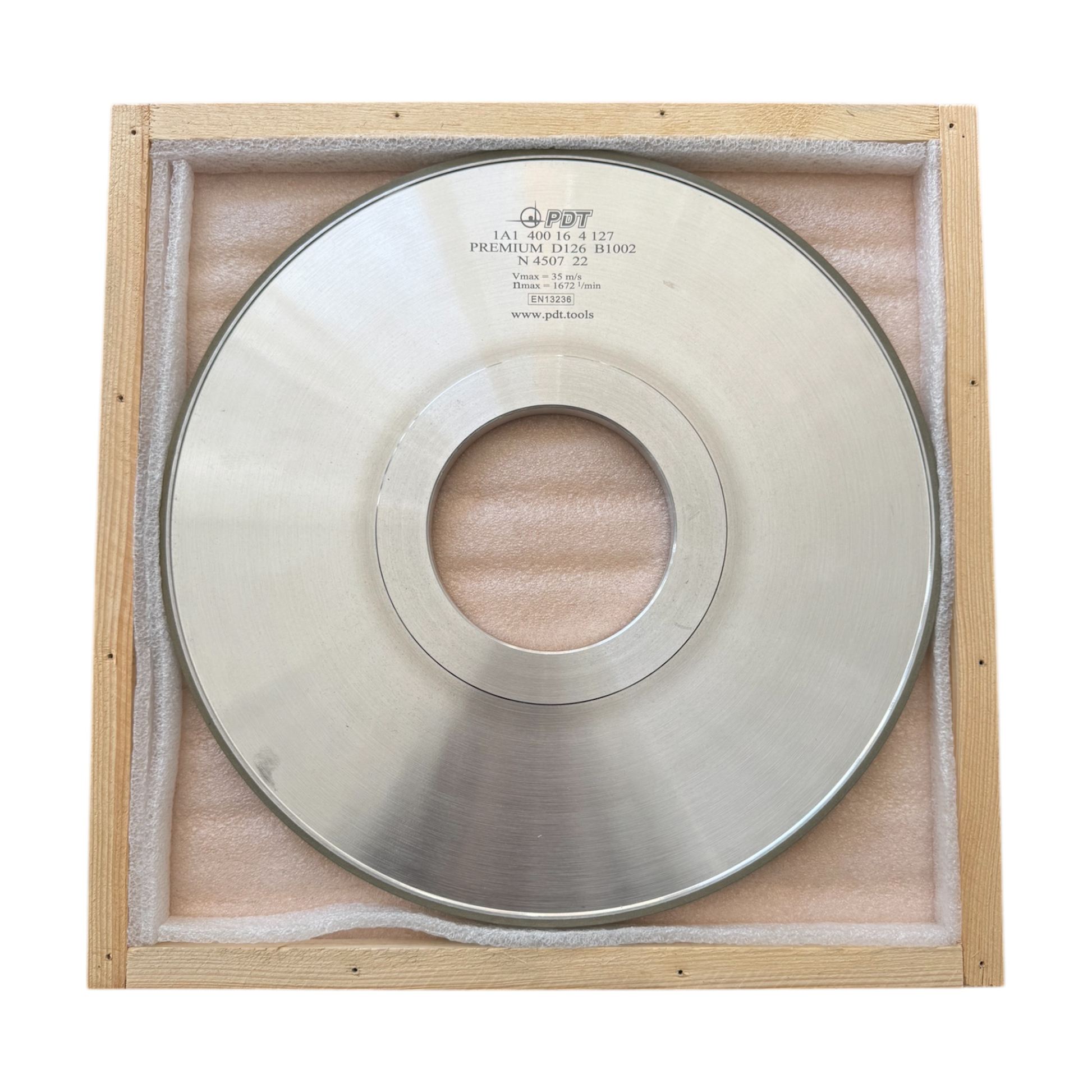

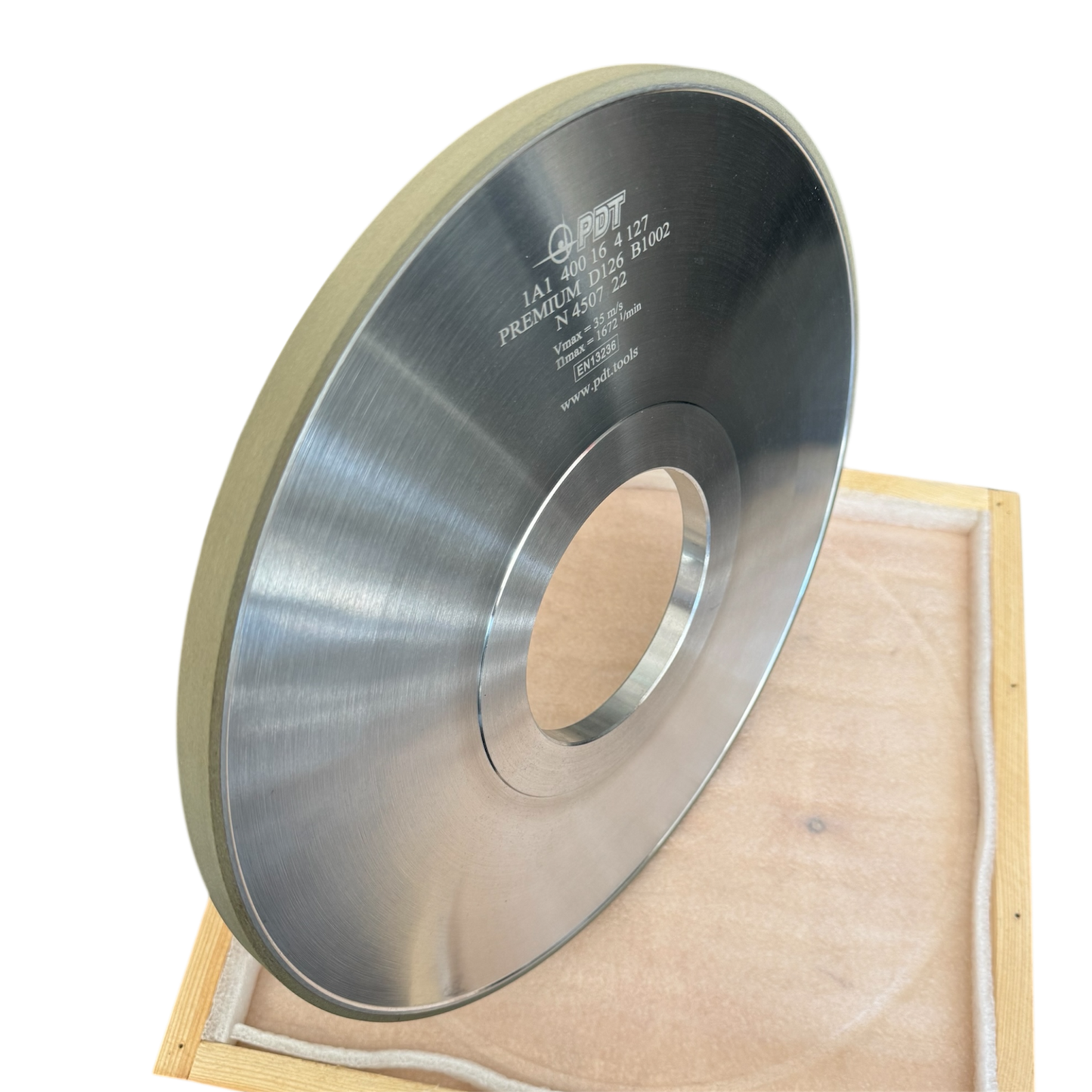

Diamond grinding wheel 1A1 400-16-4-127 D126 PREMIUM B1002

Diamond grinding wheel 1A1 for flat surface grinding.

Specifications:

Diameter (D): 400mm(15.748'')

Thickness of diamond layer (T): 16mm(0.630'')

Height of diamond layer (X): 4mm(0.157'')

Mounting hole (H): 127mm(5'')

Grit size: D126 - 140 Grit

Bond: Resin bond

Coolant: Required

Quality line: PREMIUM

• Used for machining of conical, cylindrical and flat surfaces, cylindrical and conical apertures.

• Machining of cylindrical surface parts and surface ends at one set-up.

• Machining of recesses and slots of carbide stamps.

• Sharpening and finishing of carbide tools.
