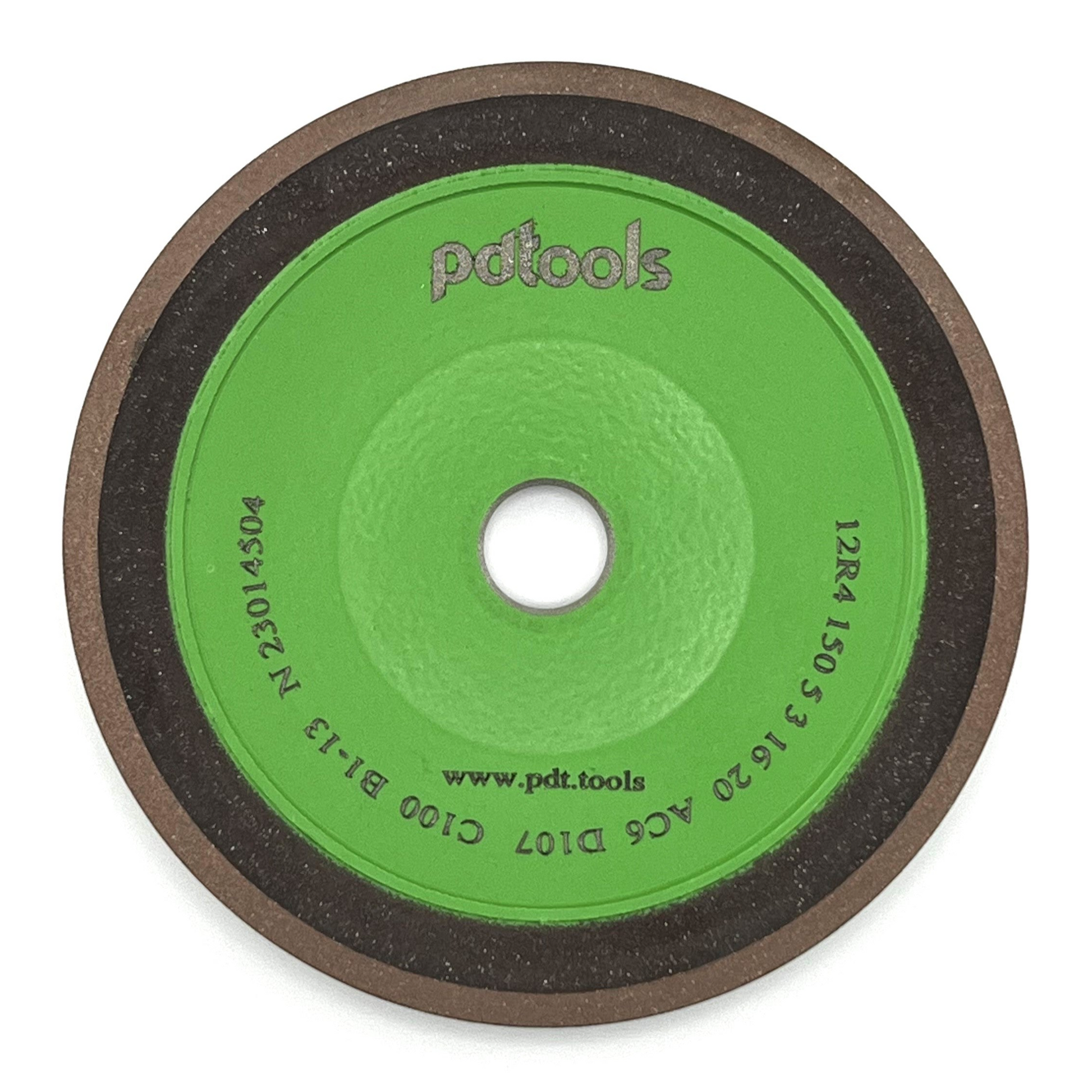

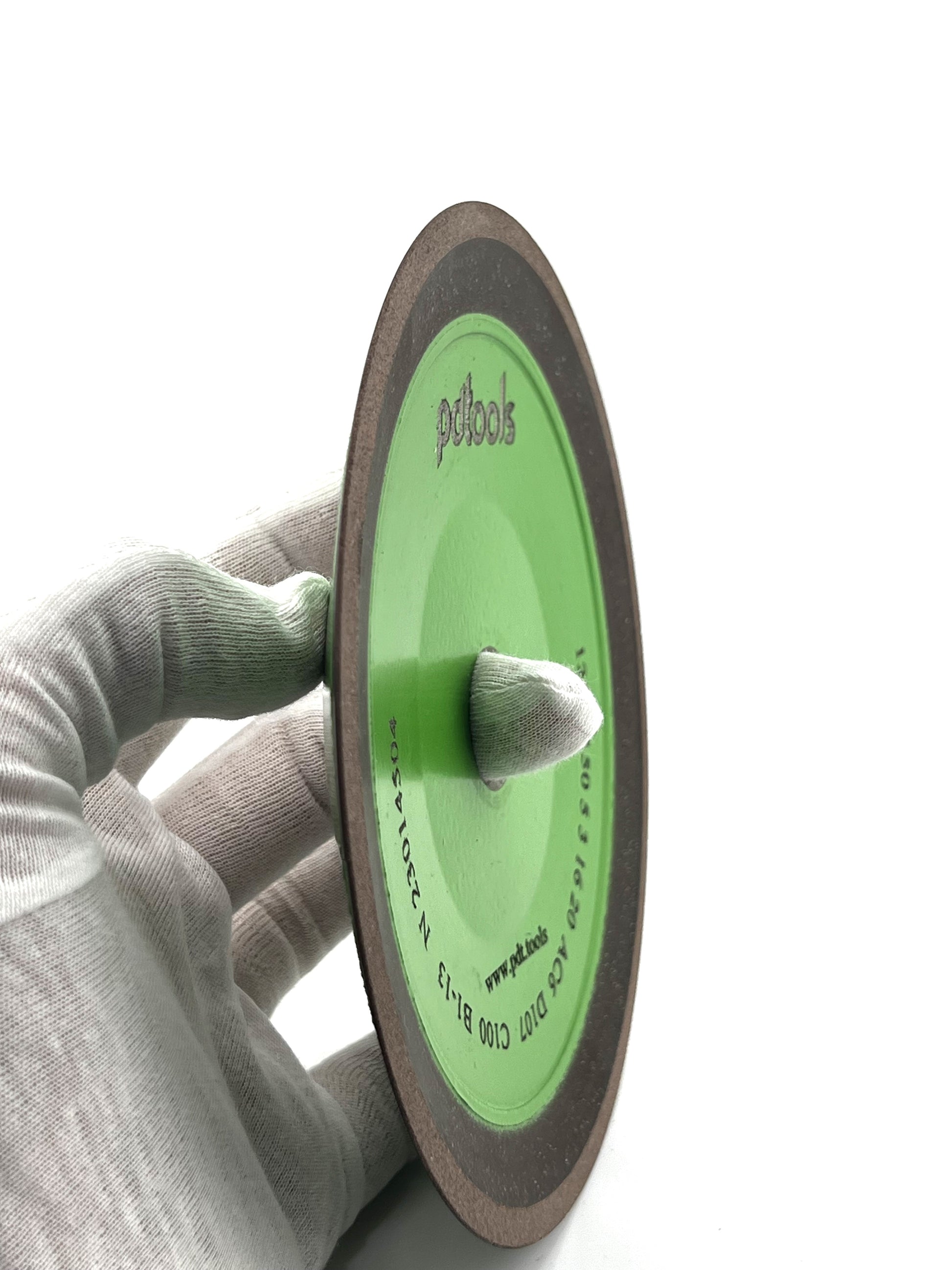

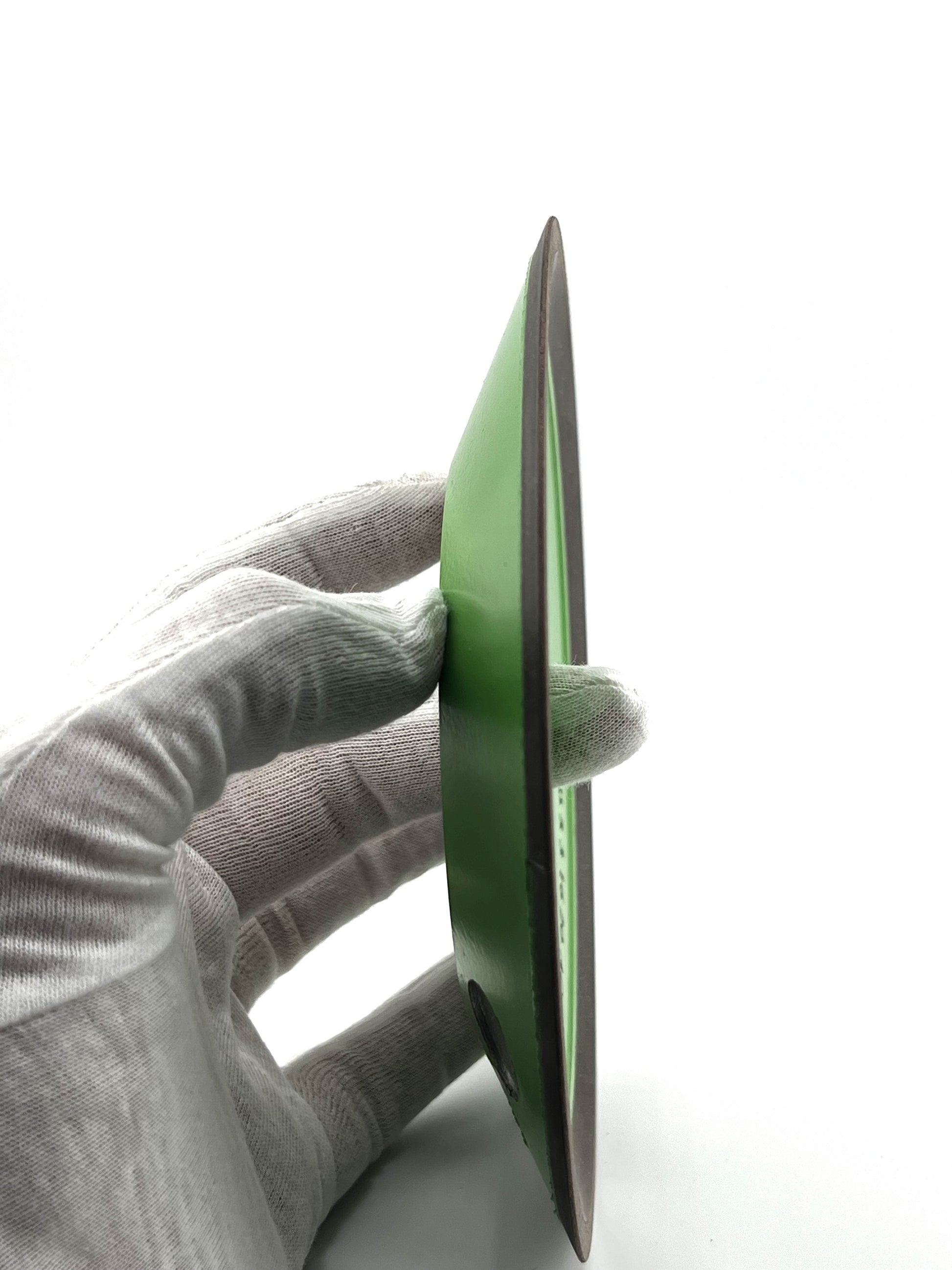

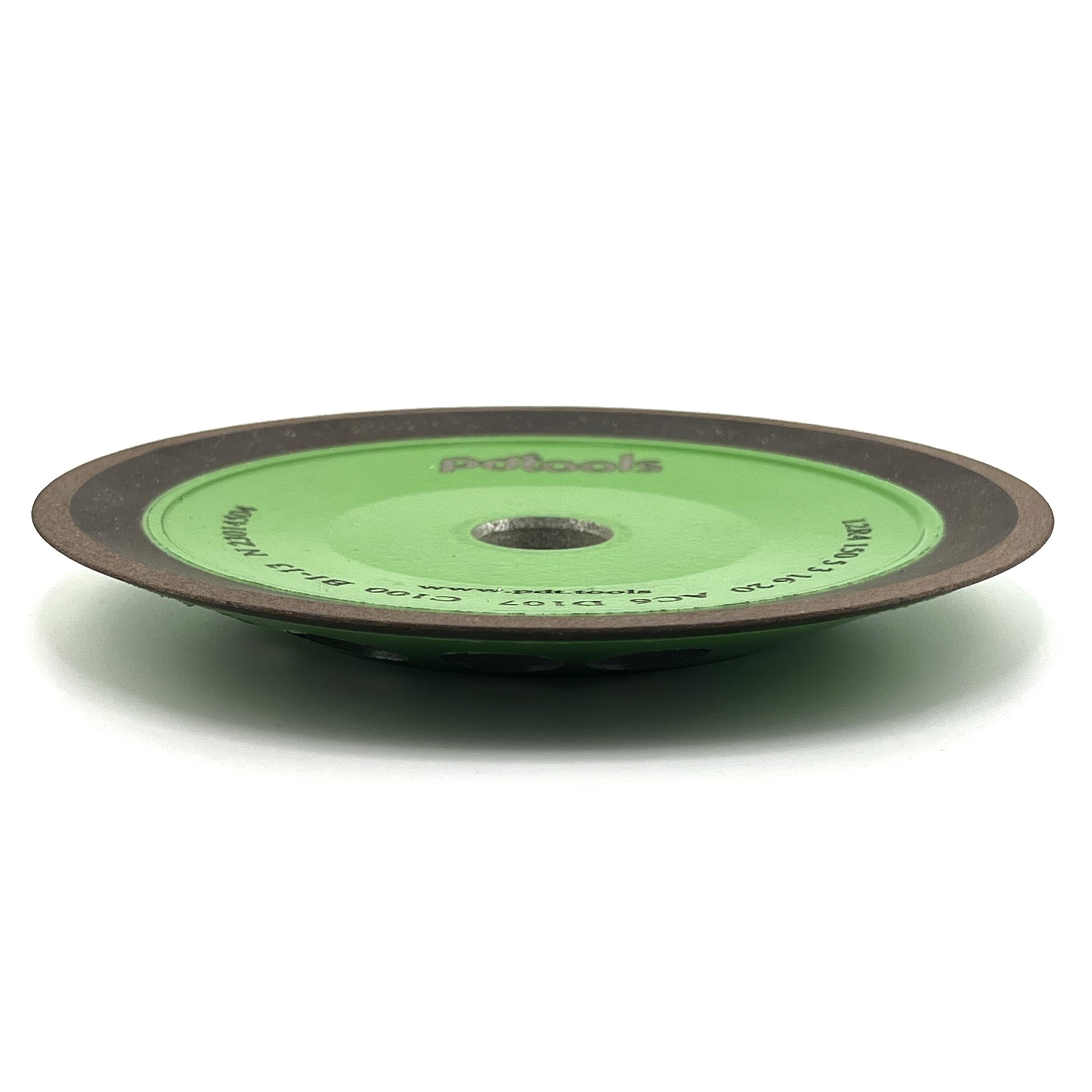

Diamond grinding wheel 12R4 150-5-3-16-20 D107 C100 B1-13

Diamond grinding wheel 12R4 for face grinding of circular saws with carbide tips.

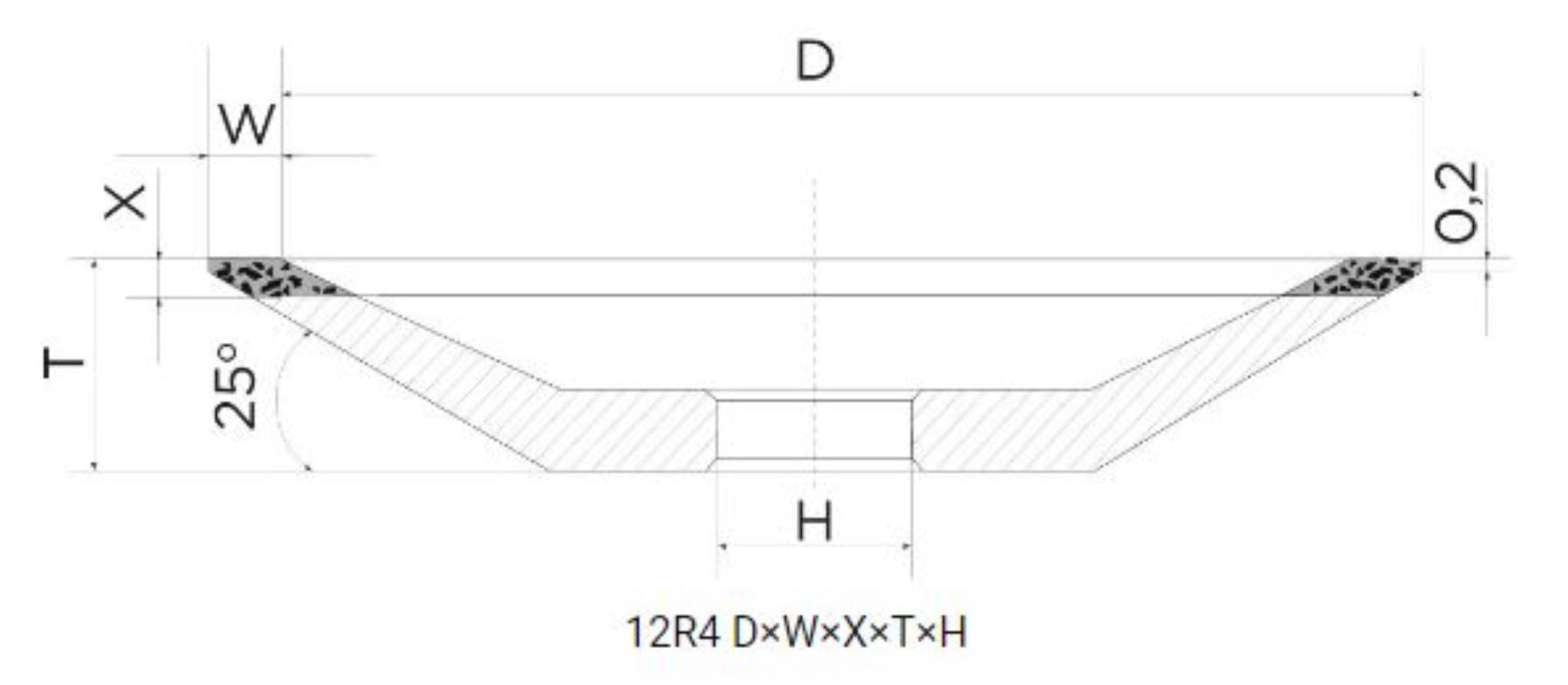

Specifications:

Diameter (D): 150mm(6'')

Width of diamond layer (W): 5mm(0.197'')

Height of diamond layer (X): 3mm(0.118'')

Height of the wheel (T): 16mm(0.630'')

Mounting hole (H): 20mm(0.787'')

Grit size: D107 - 170 Grit

Bond: Resin bond

Coolant: Required.

Quality line: STANDARD
