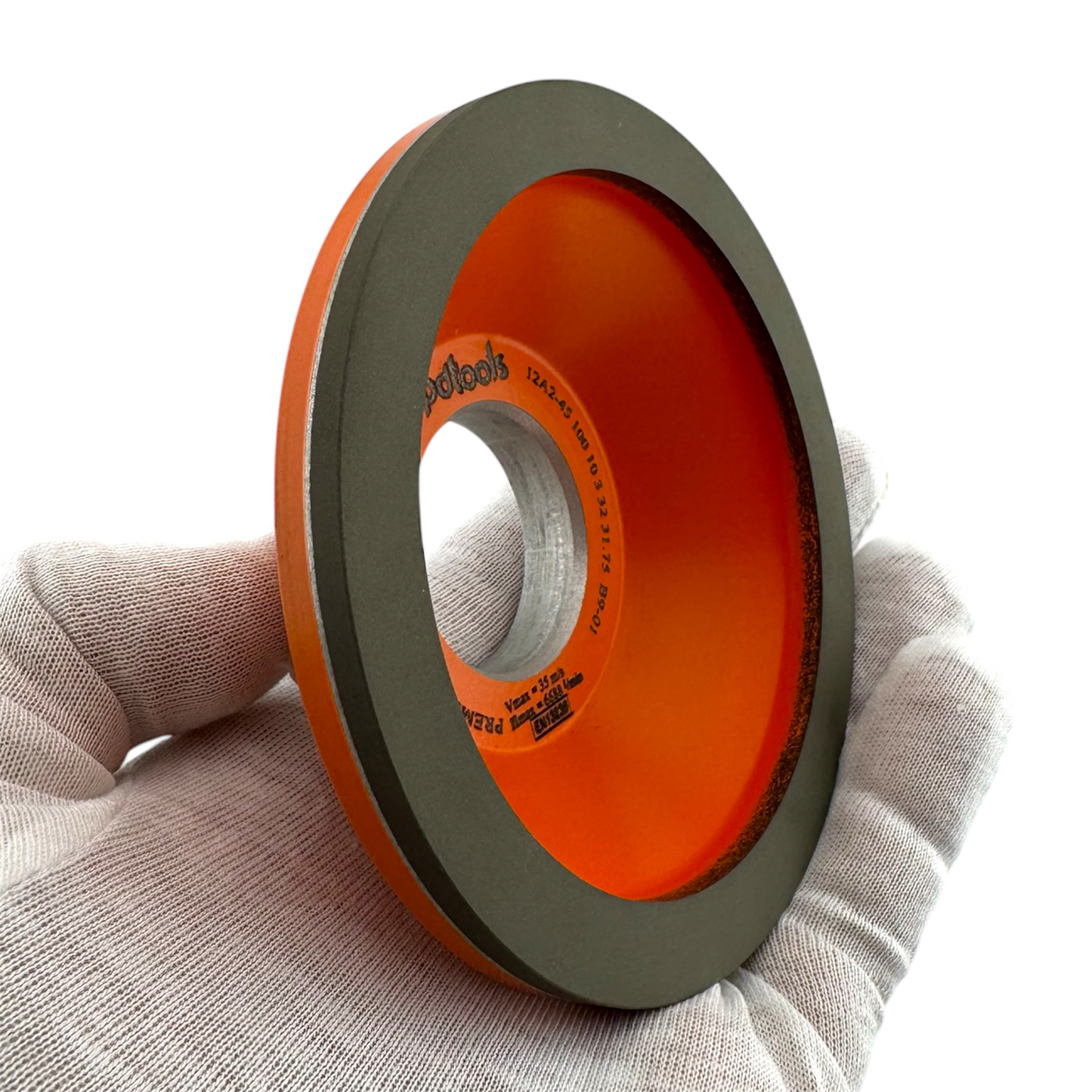

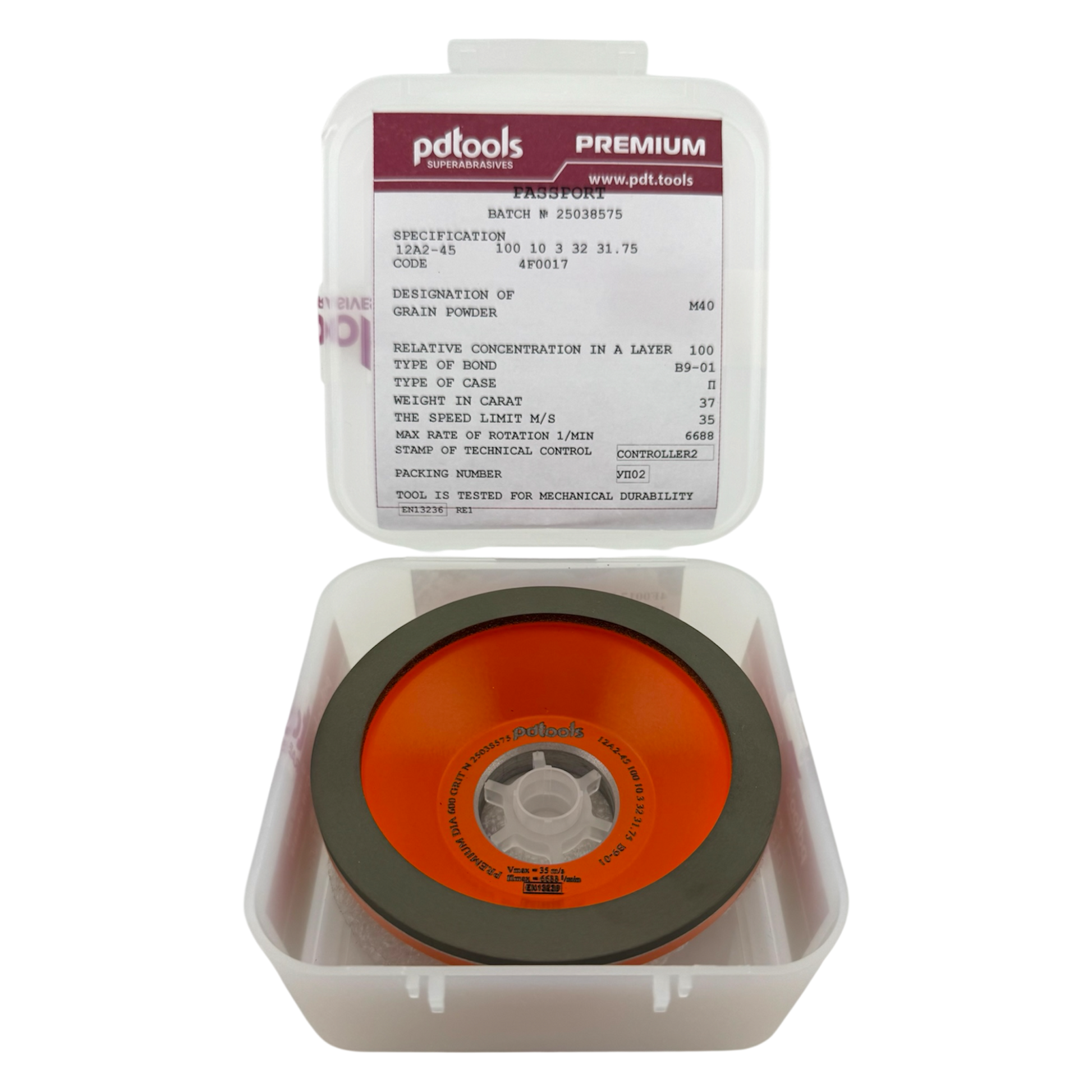

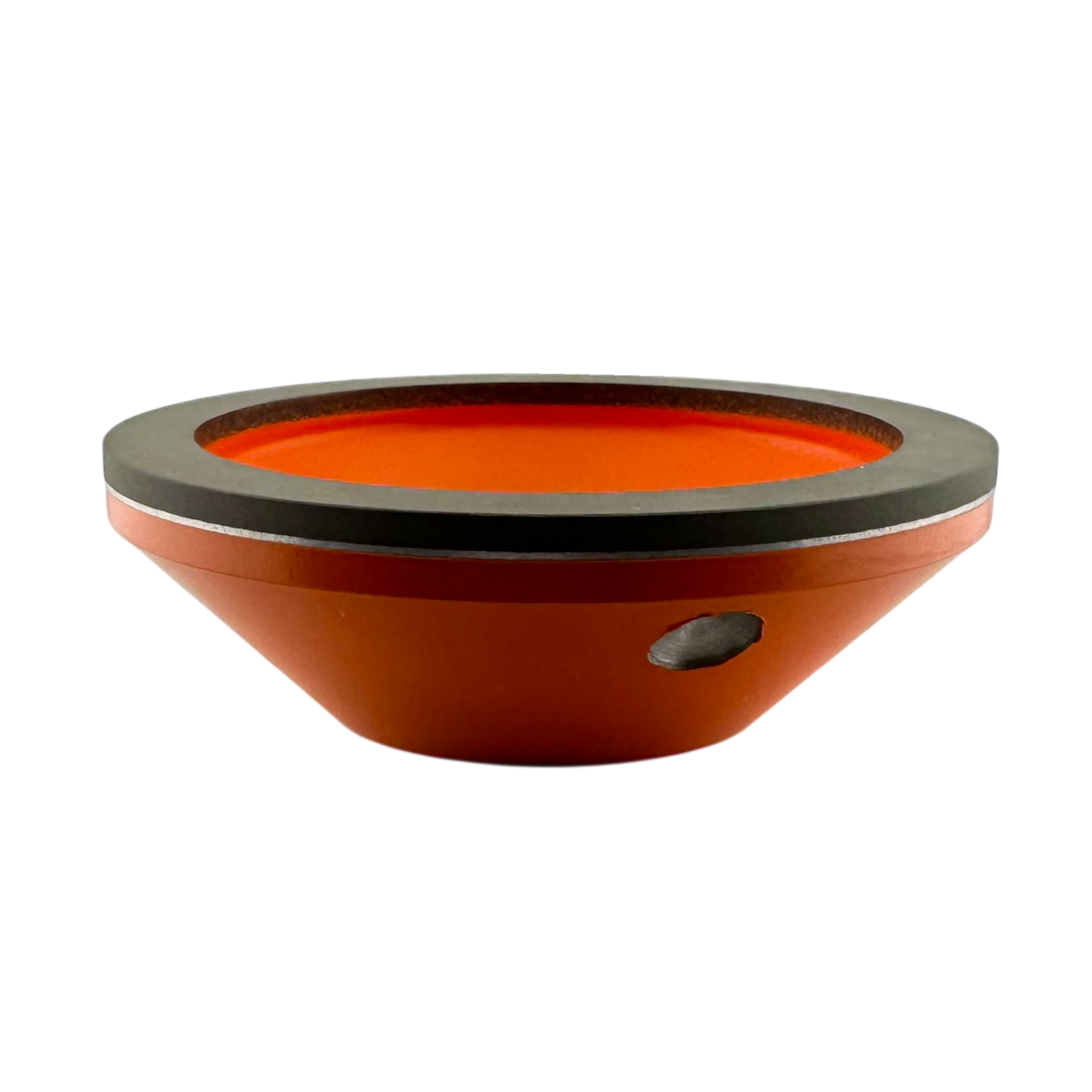

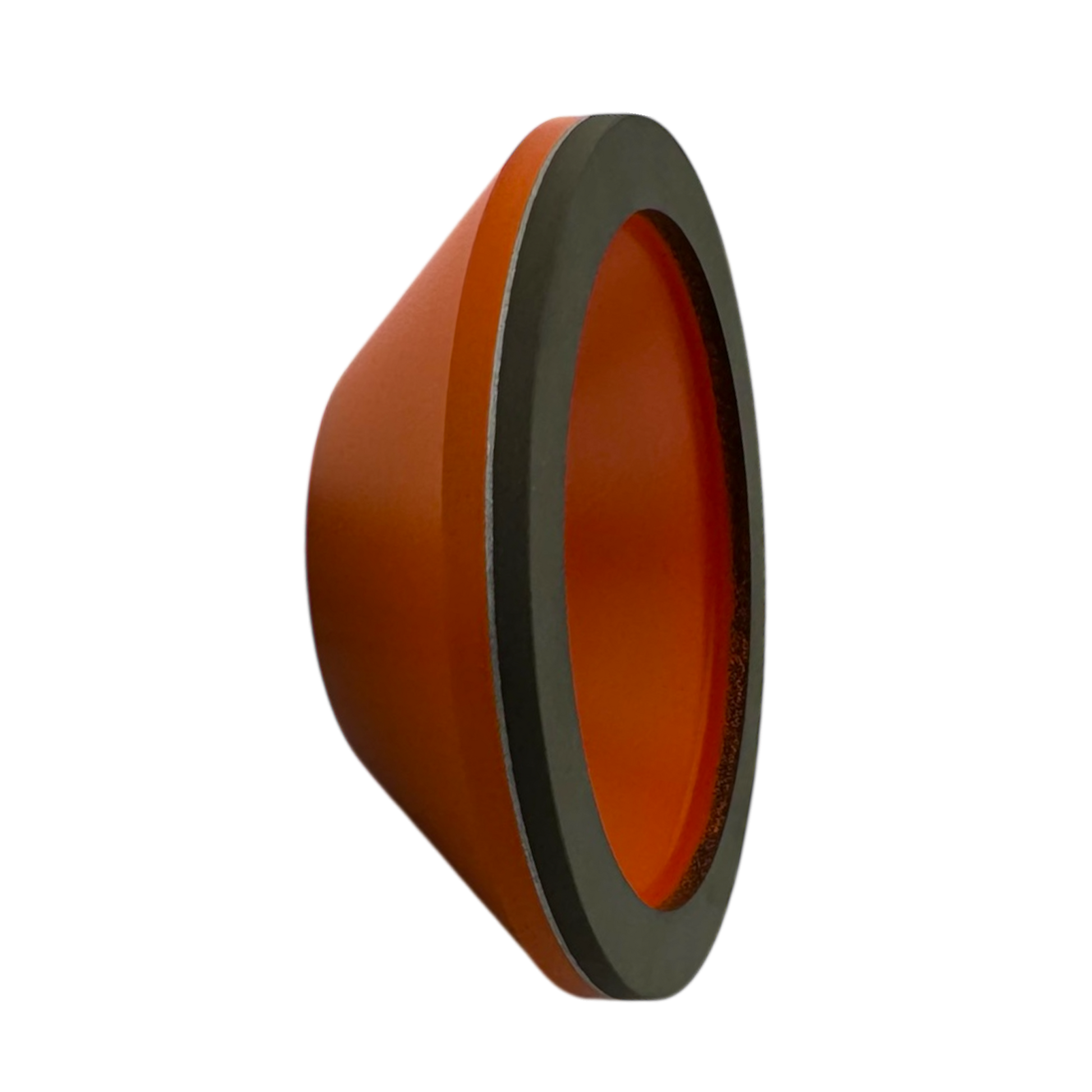

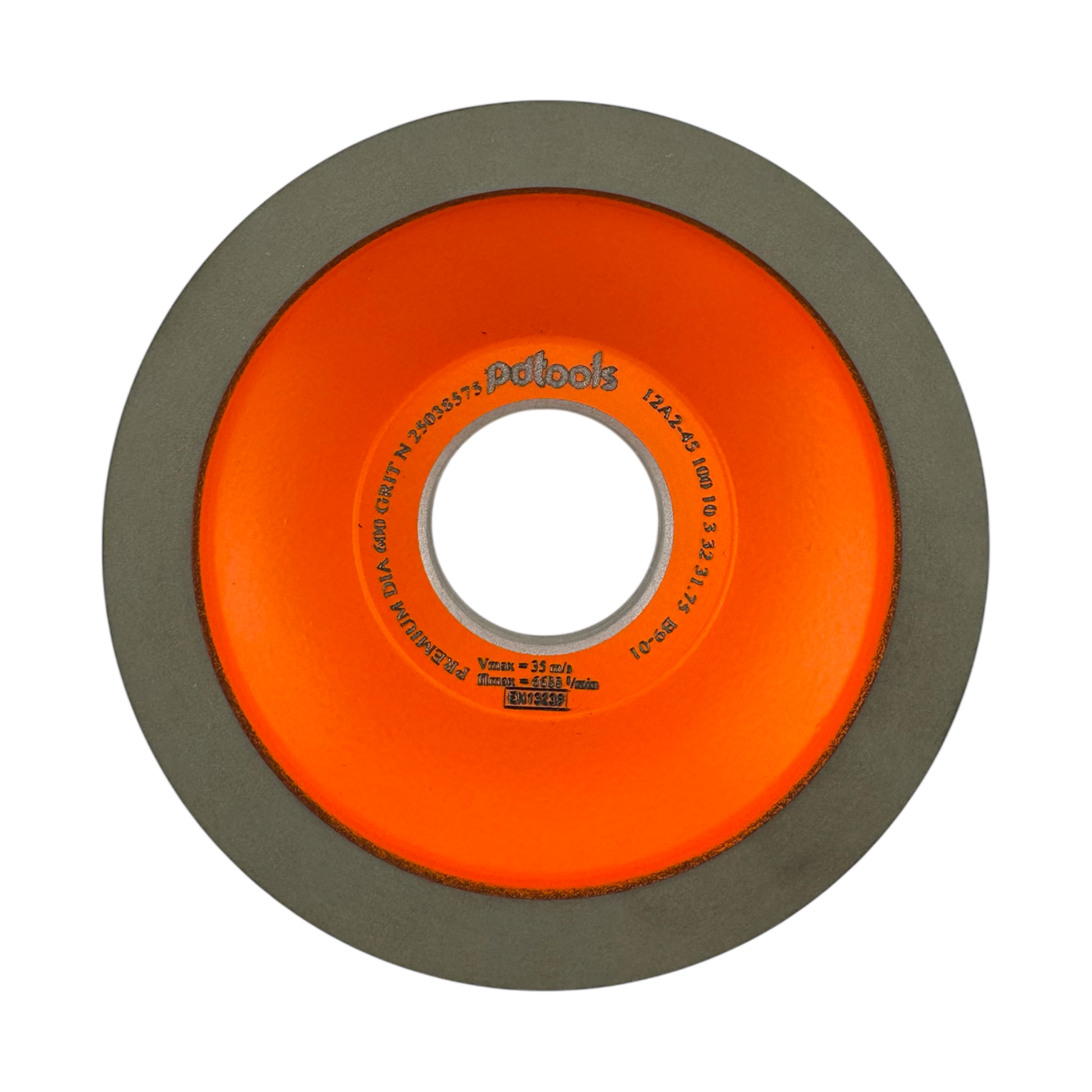

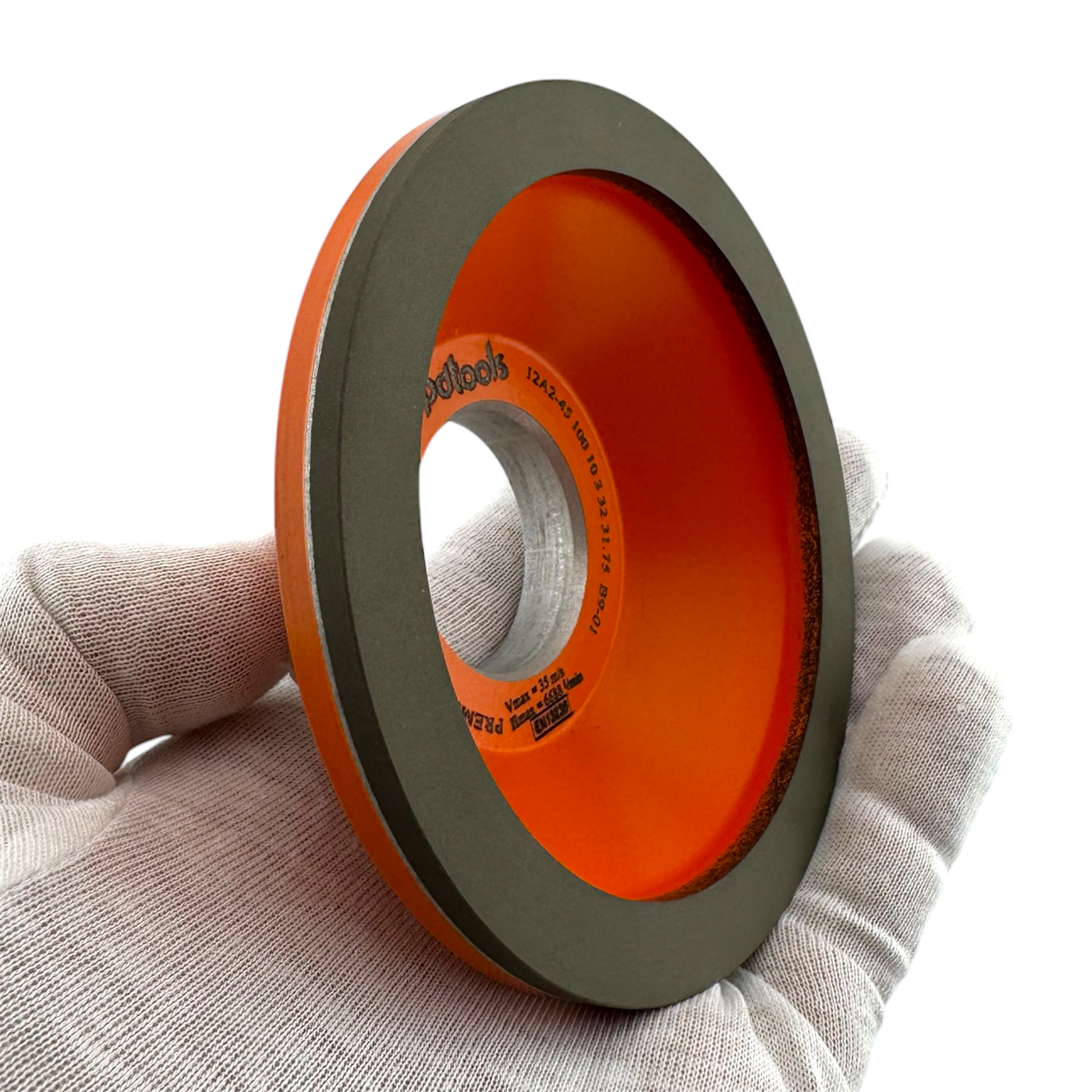

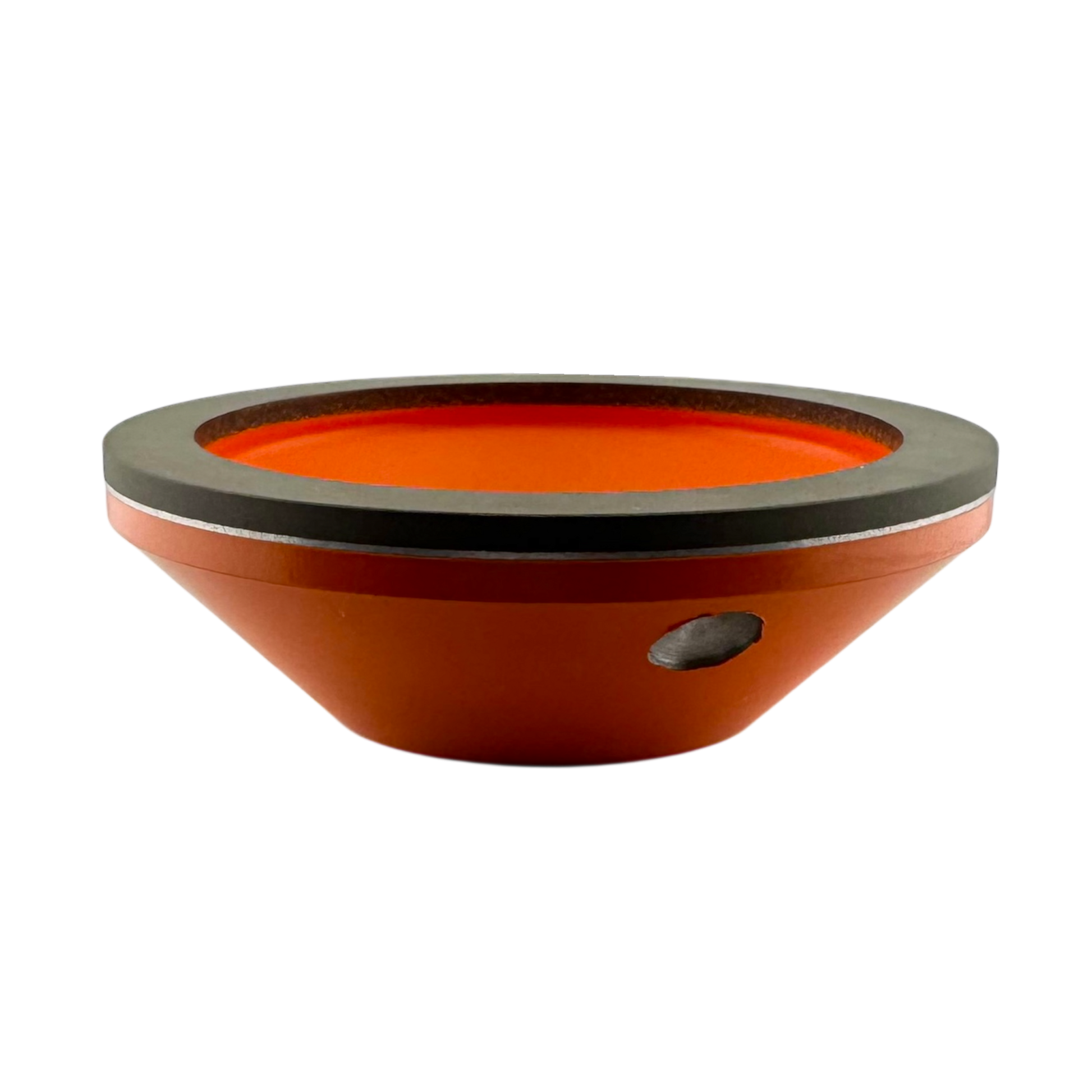

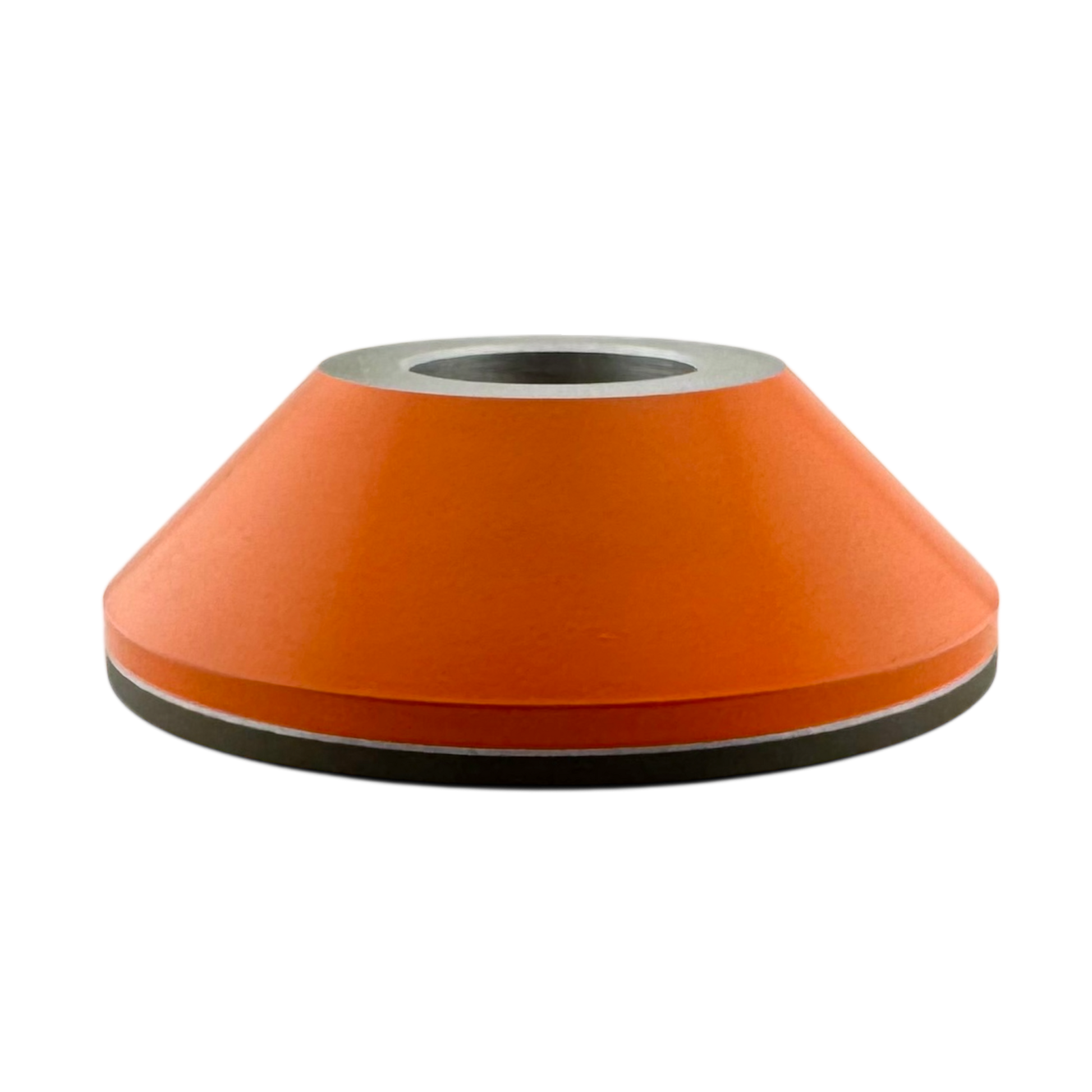

Diamond grinding wheel 12A2-45 100-10-3-32-31.75 M40 PREMIUM B9-01

Diamond grinding wheel 12A2-45 for sharpening and finishing of front and back surface of multiple-blade carbide tools (with straight and spiral teeth), cutters, drills and other tools, for processing of flat machine part surfaces.

Specifications:

Diameter (D): 100mm(4'')

Width of diamond layer (W): 10mm(0.394'')

Height of diamond layer (X): 3mm(0.118'')

Height of the wheel (T): 32mm(1.26'')

Mounting hole (H): 31.75mm(1.25'')

Grit size: M40 - 550 Grit

Bond: Resin bond

Coolant:  Non necessary

Quality line: PREMIUM
