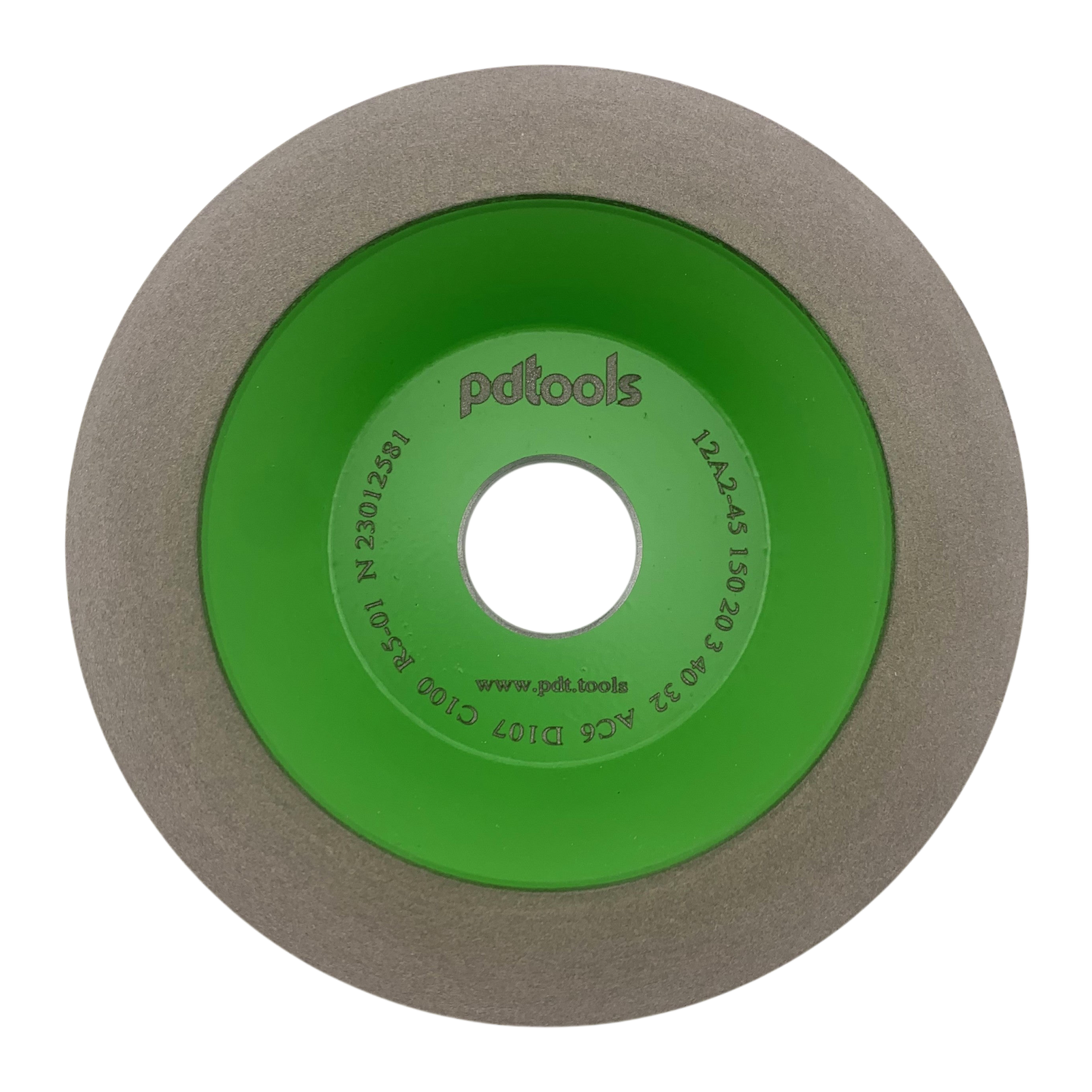

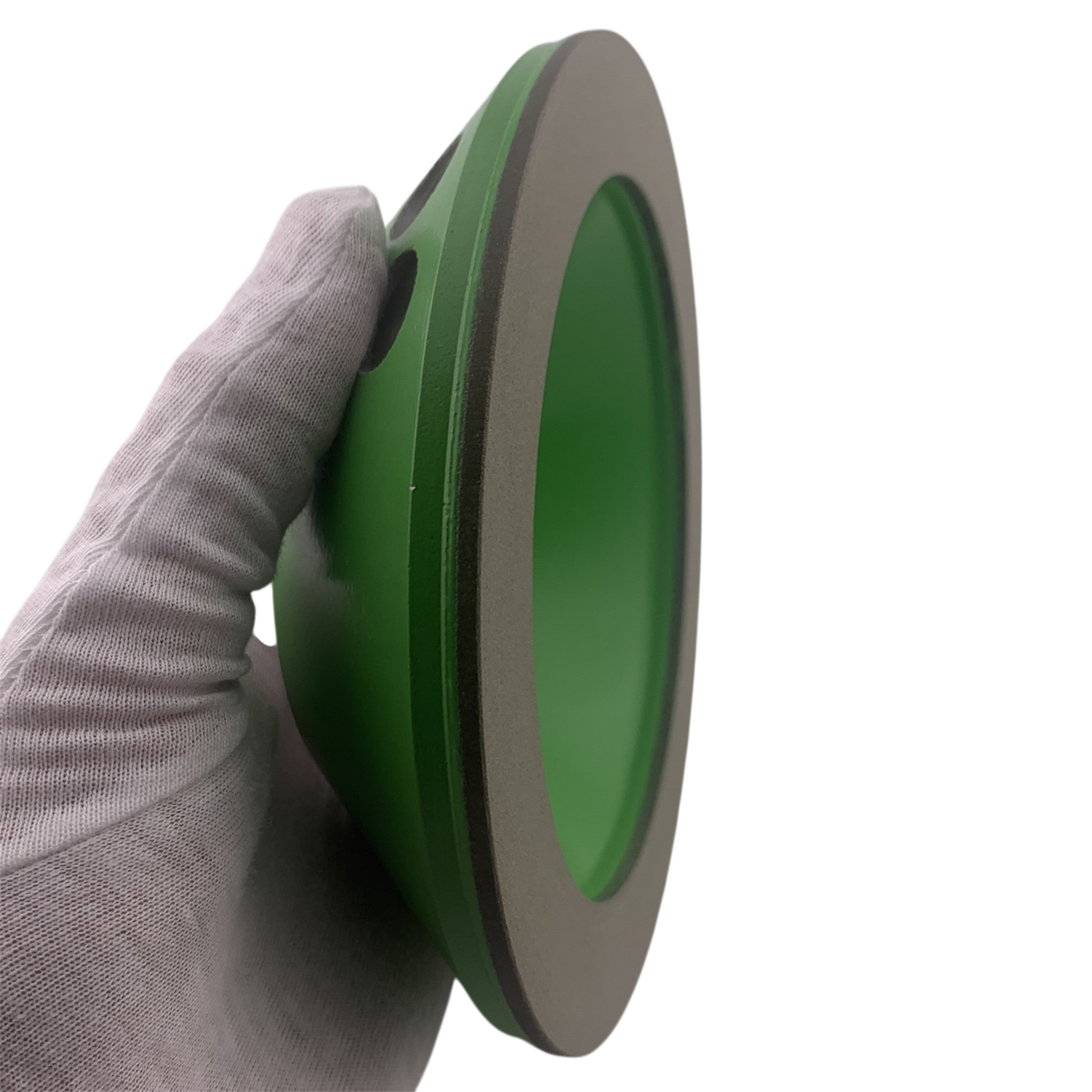

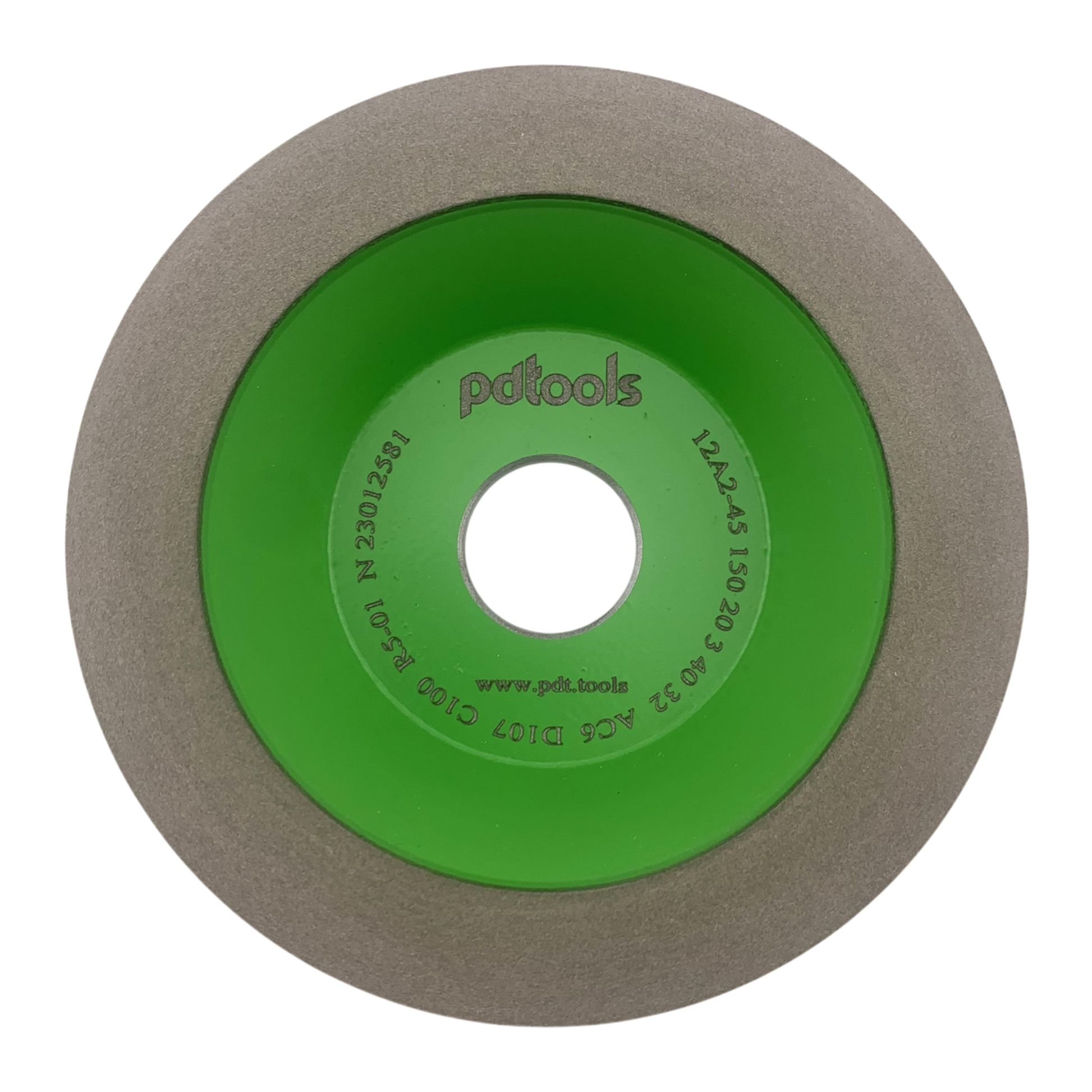

Diamond grinding wheel 12A2-45 150-20-3-40-32 D107 C100 STANDARD R5-01

Diamond grinding wheel 12A2-45 for sharpening and finishing of front and back surface of multiple-blade carbide tools (with straight and spiral teeth), cutters, drills and other tools, for processing of flat machine part surfaces.

Specifications:

Diameter (D): 150mm(6'')

Width of diamond layer (W): 20mm(0.787'')

Height of diamond layer (X): 3mm(0.118'')

Height of the wheel (T):  40mm(1.575'')

Mounting hole (H): 32mm(1.260'')

Grit size: D107 - 170 Grit

Bond: Resin bond

Coolant: Not necessary

Quality line: STANDARD
