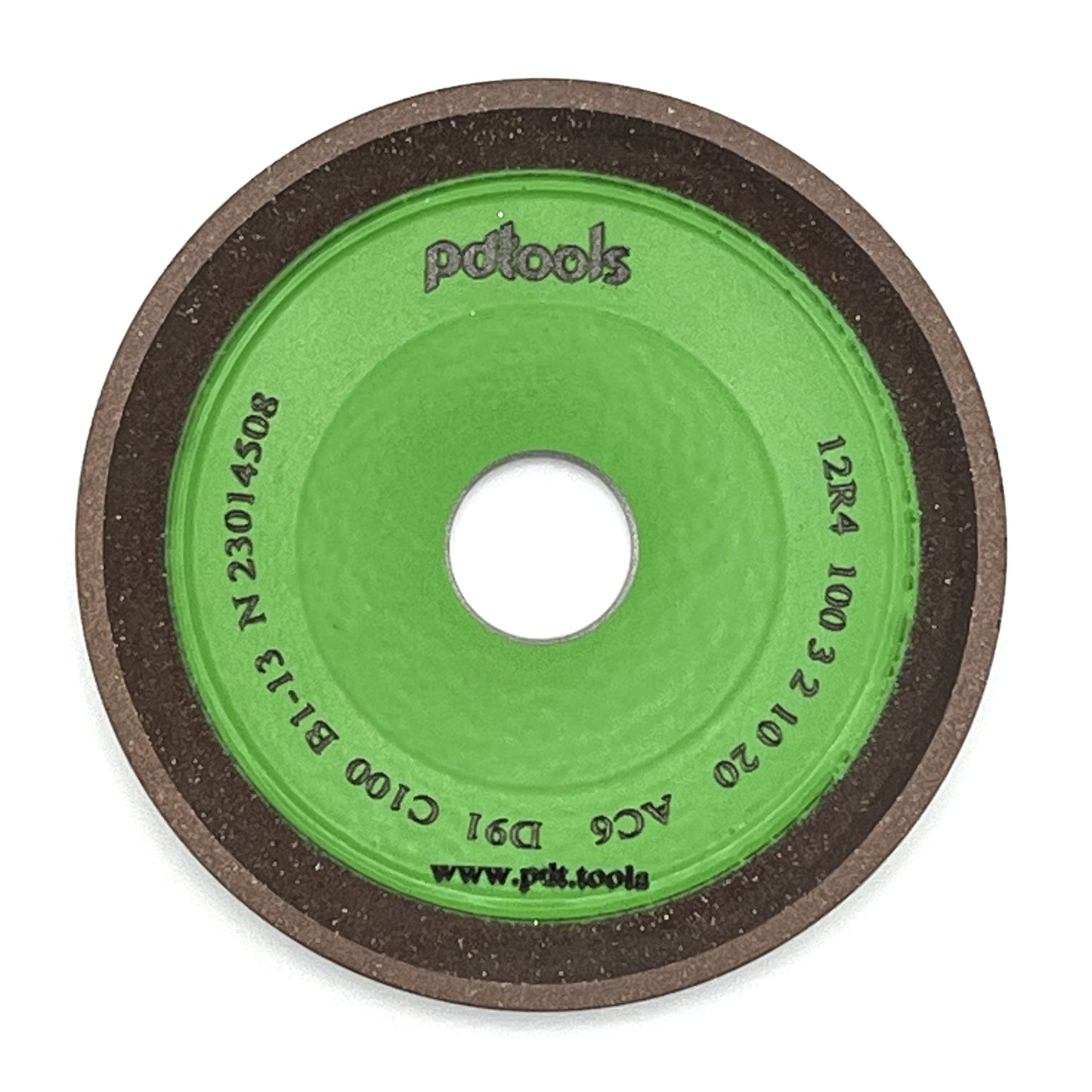

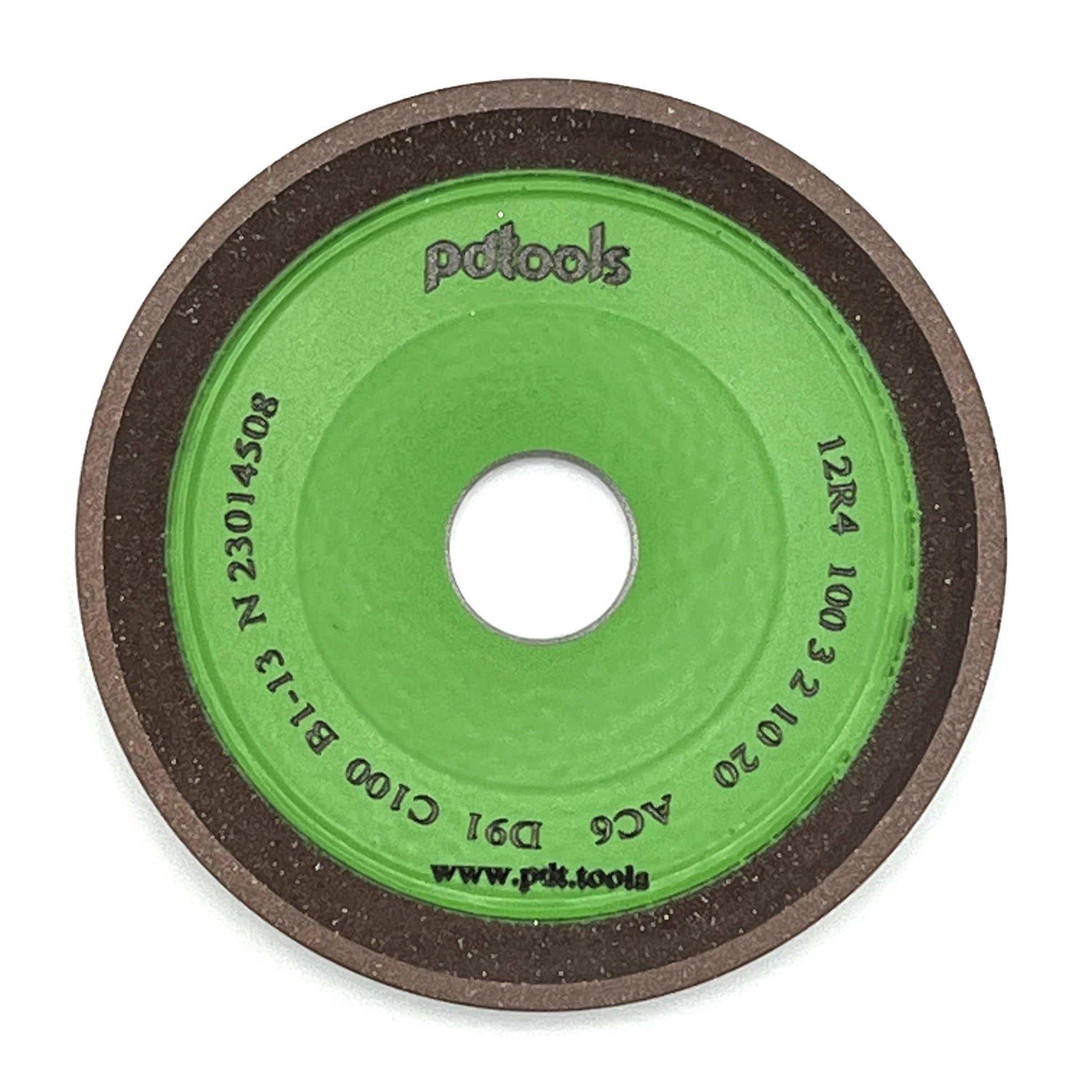

Diamond grinding wheel 12R4 100-3-2-10-20 D91 C100 B1-13

Diamond grinding wheel 12R4 for face grinding of circular saws with carbide tips.

Specification:

Diameter (D): 100mm(4'')

Width of diamond layer (W): 3mm(0.118'')

Height of diamond layer (X): 2mm(0.079')

Height of the wheel (T): 10mm(0.394'')

Mounting hole (H): 20mm(0.787'')

Grit size: D91 - 200 Grit

Bond: Resin bond

Coolant: Required

Quality line: STANDARD
