PDTools Superabrasives

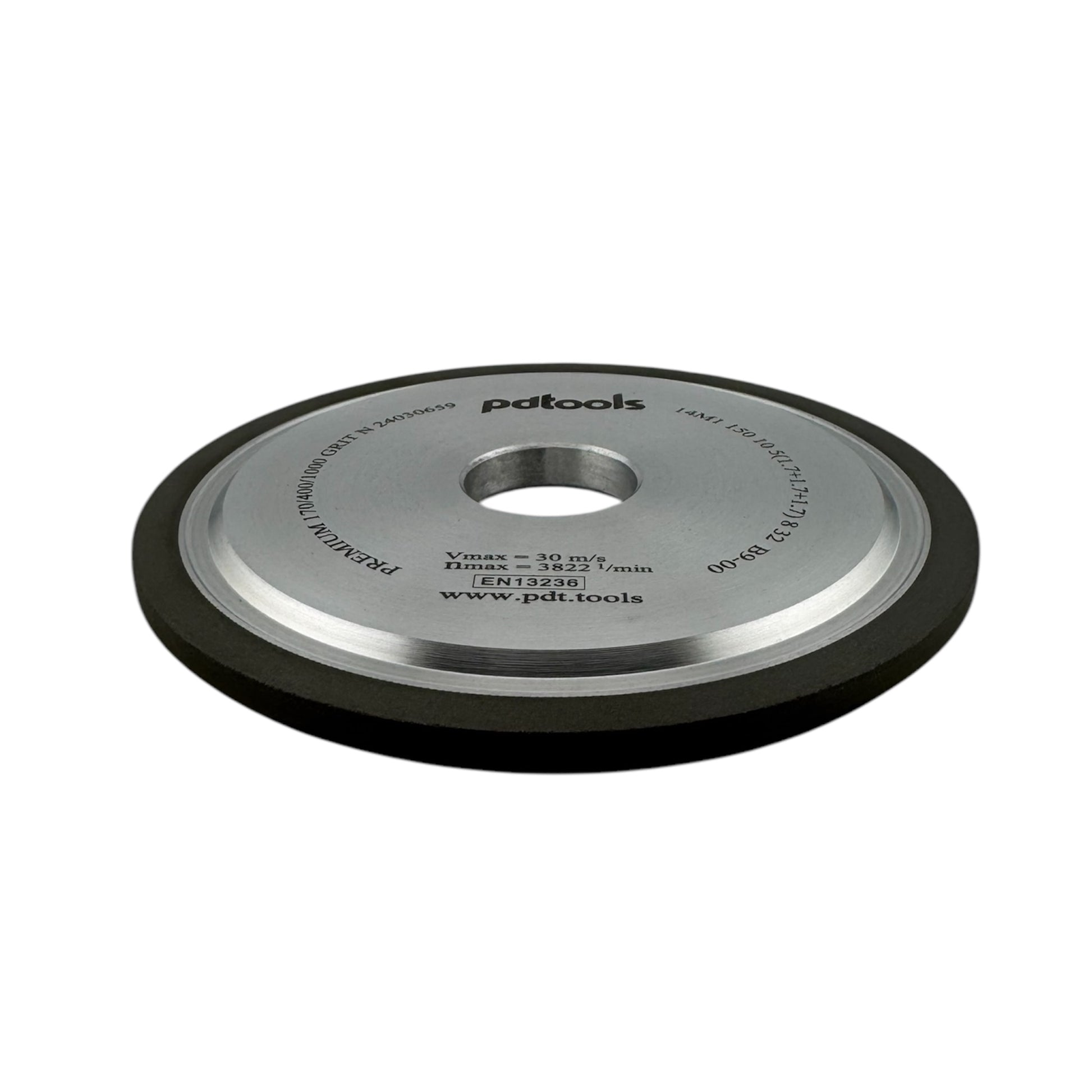

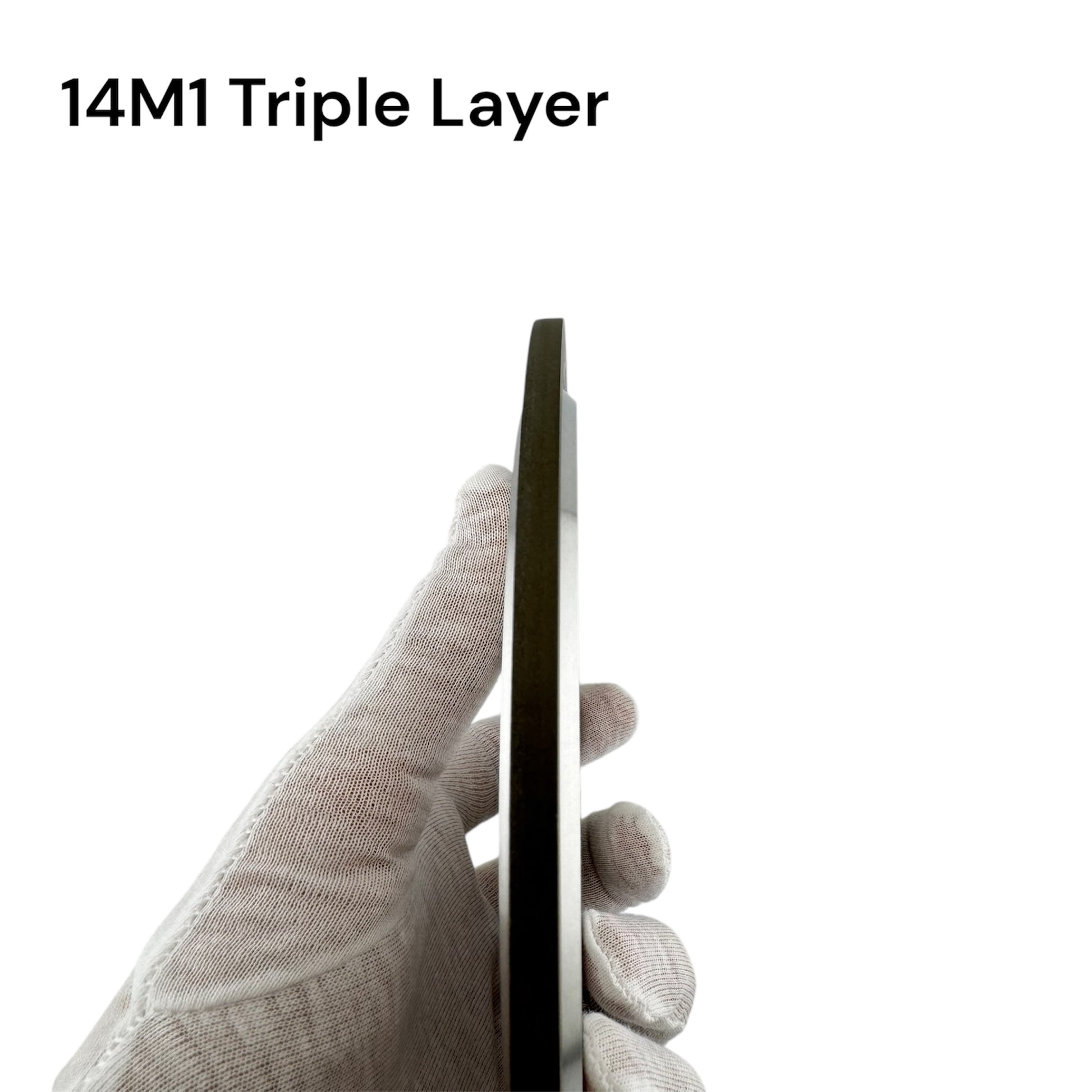

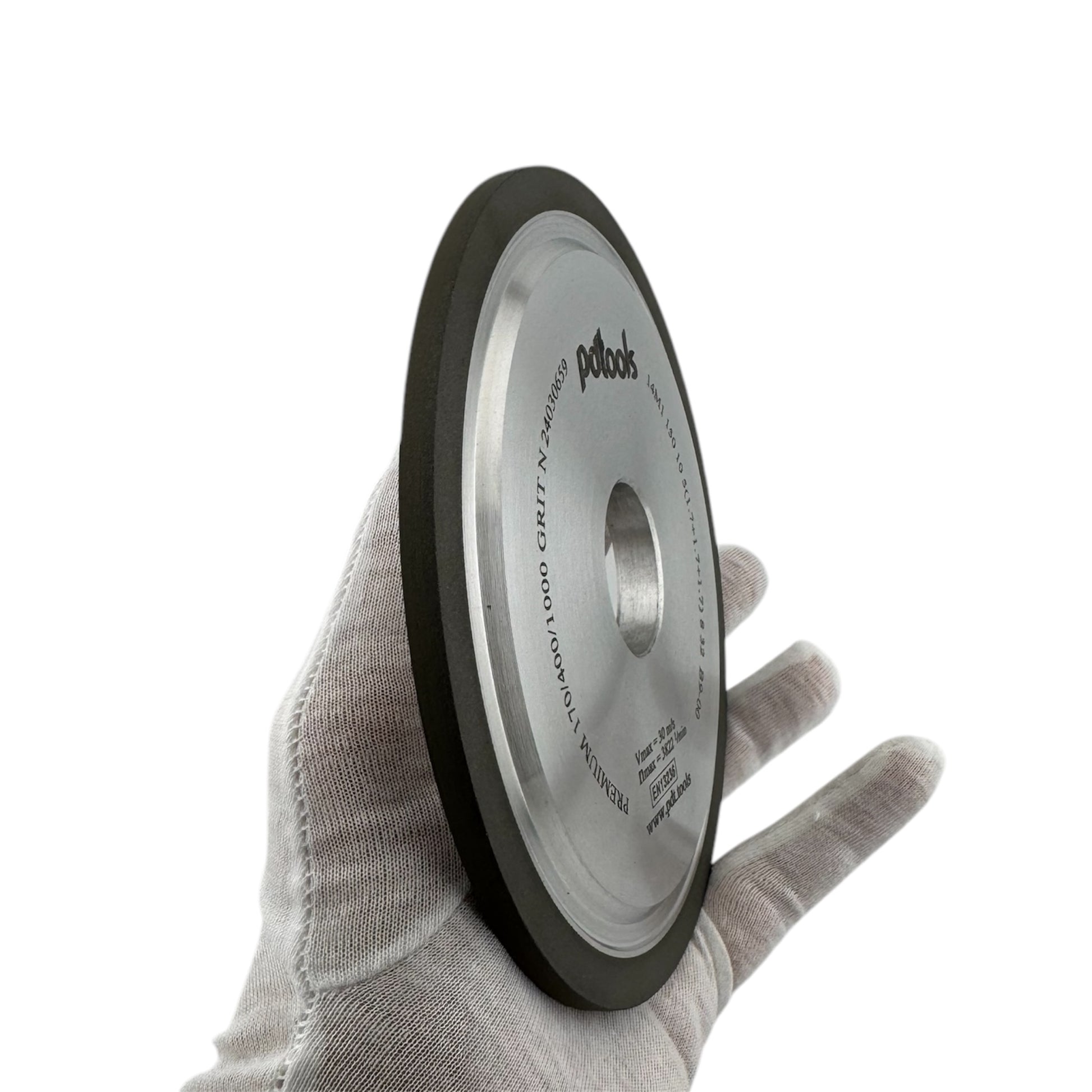

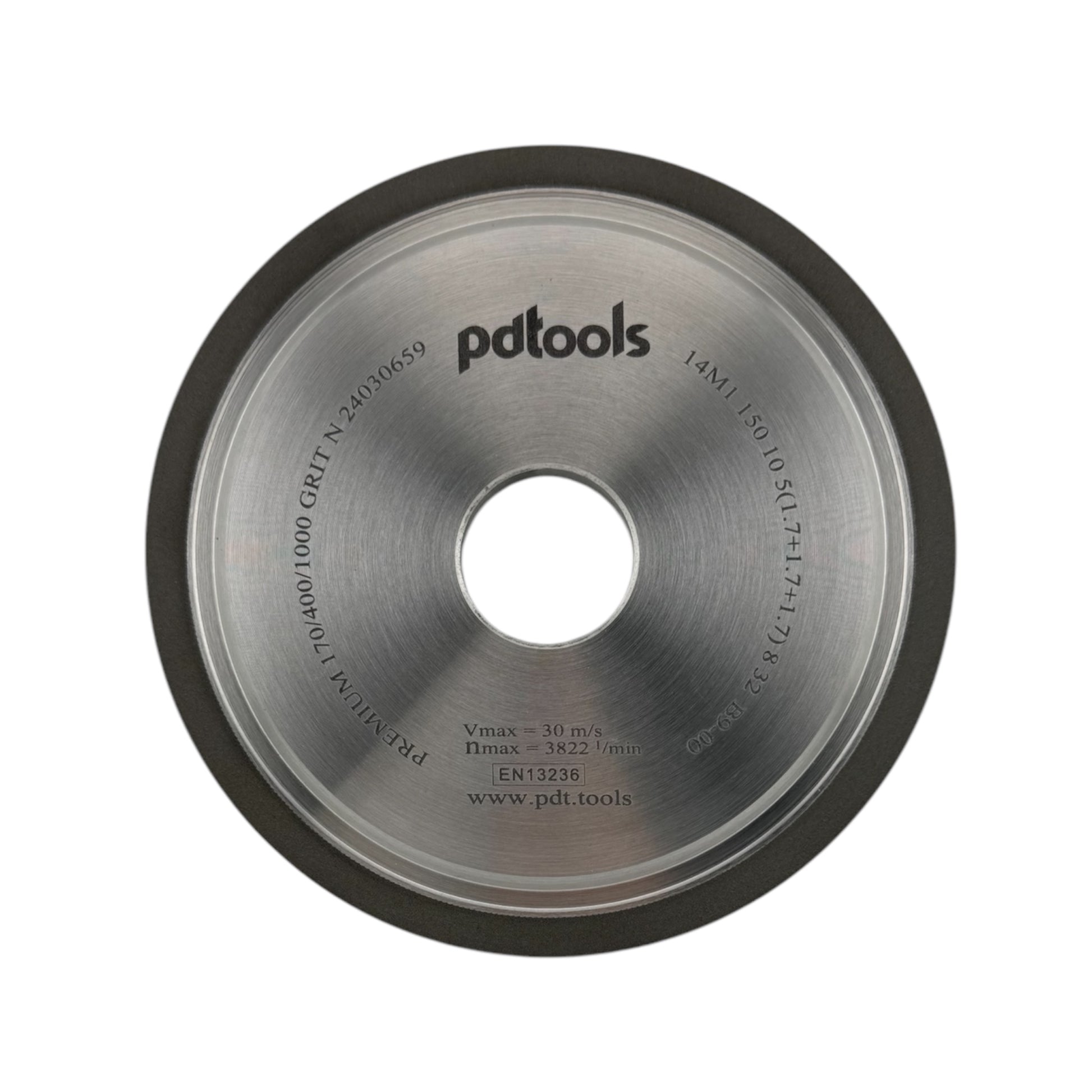

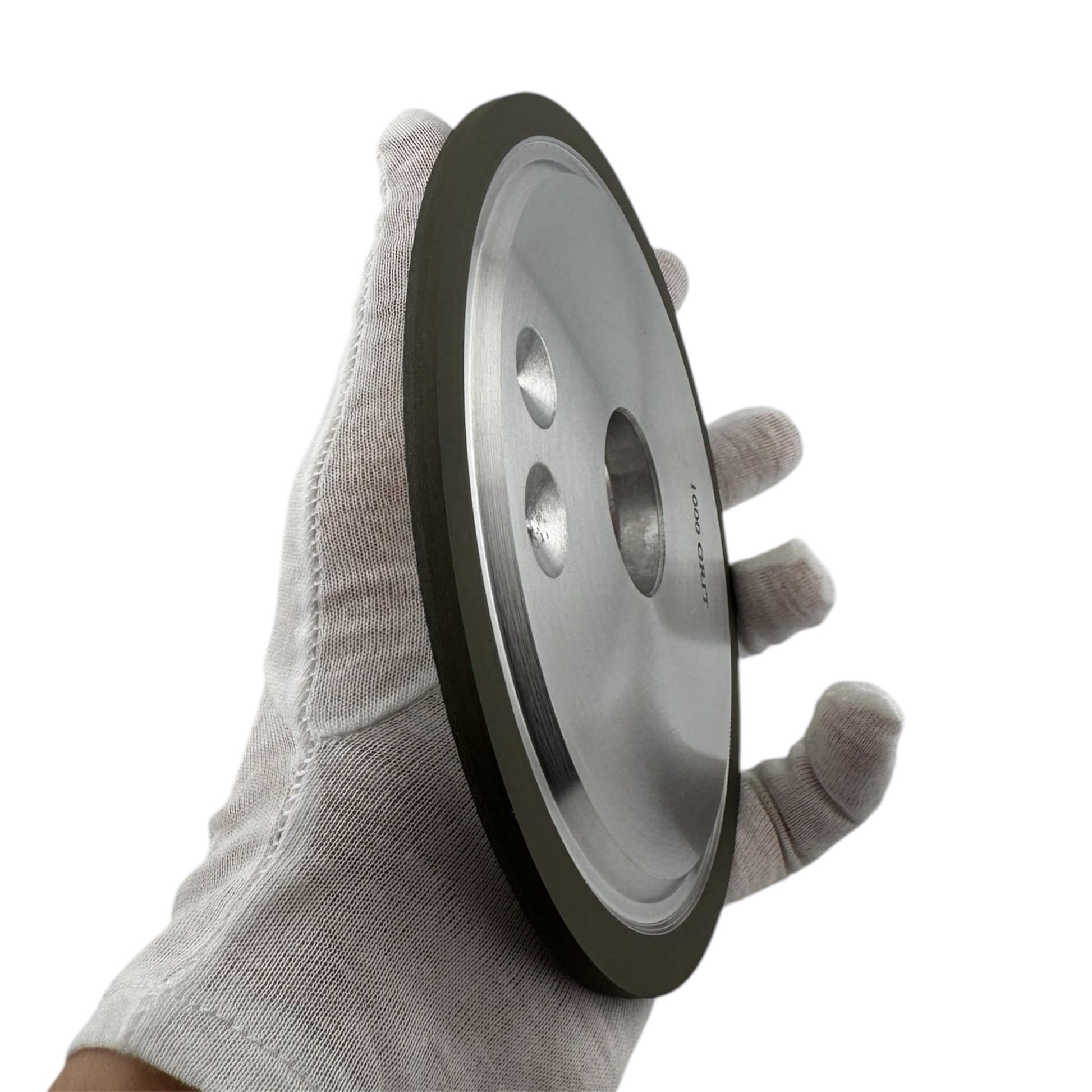

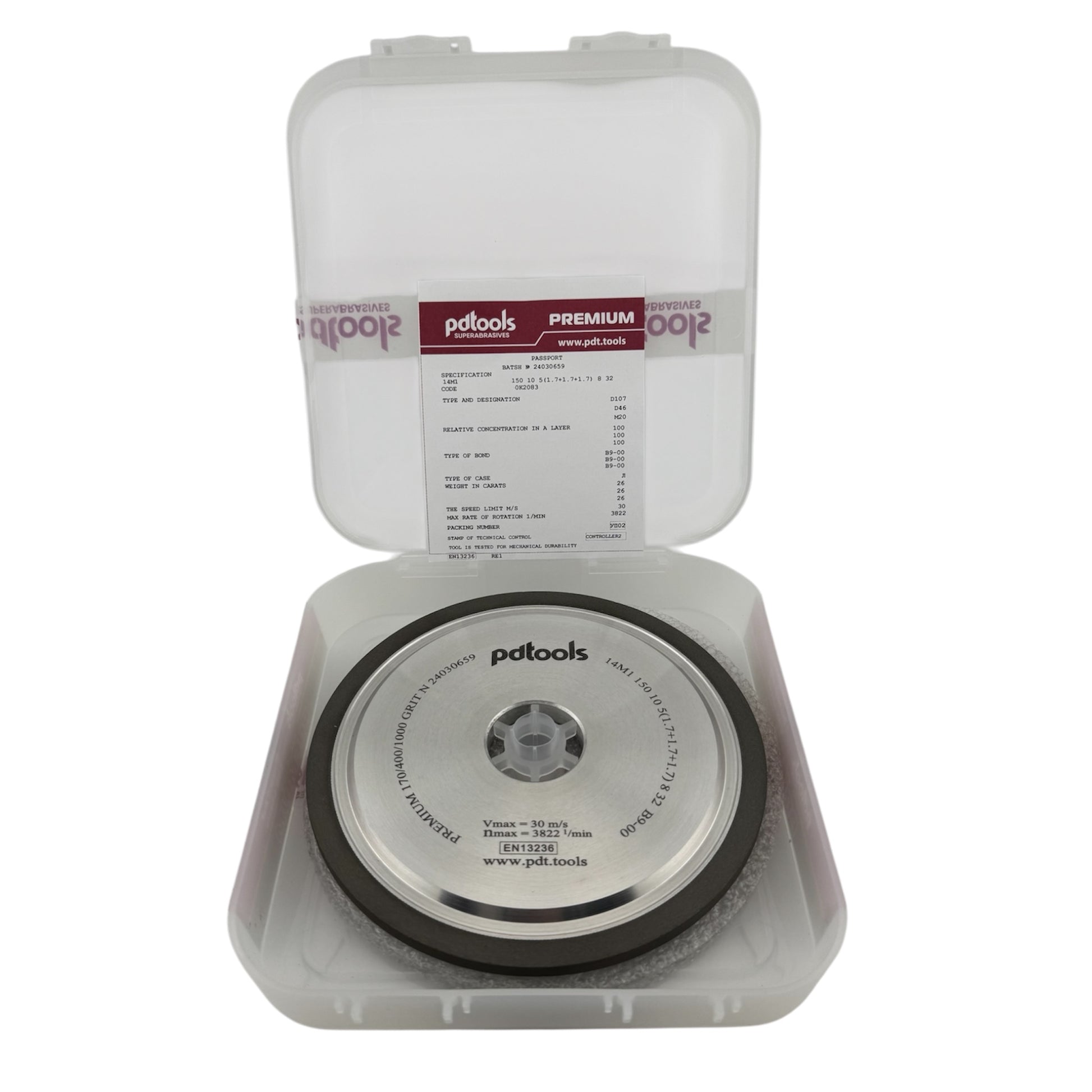

Diamond grinding wheel 14M1 150-10-5(1.7+1.7+1.7)-8-32 D107/D46/M20 C100 B9-00

Diamond grinding wheel 14M1 150-10-5(1.7+1.7+1.7)-8-32 D107/D46/M20 C100 B9-00

Regular price $242.00 USD
Regular price Sale price $242.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Triple layer diamond grinding wheel 14M1 for sharpening the back and side faces of teeth.

Specifications:

Diameter (D): 150mm(6'')

Height of diamond wheel (T): 10mm(0.394'')

Width of diamond layer (U): 5mm(0.197'') 1.7+1.7+1.7mm(0.066+0.066+0.066'')

Height of diamond layer (X): 8mm(0.315'')

Mounting hole (H): 32mm(1.260'')

Grit size: D107/D46/M20 - 170/400/1000 Grit

Bond: Resin bond

Coolant: Required

Quality line: PREMIUM
