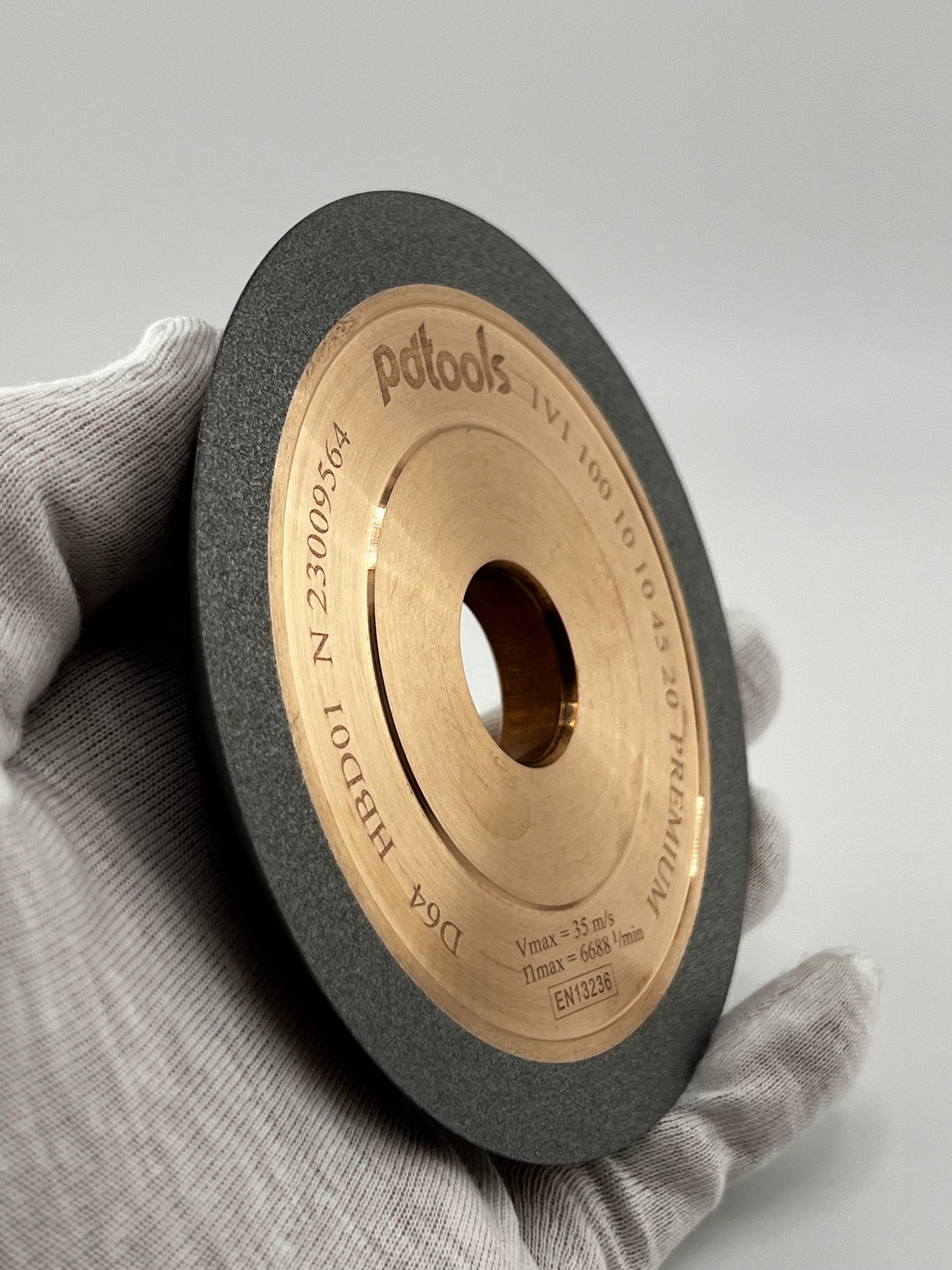

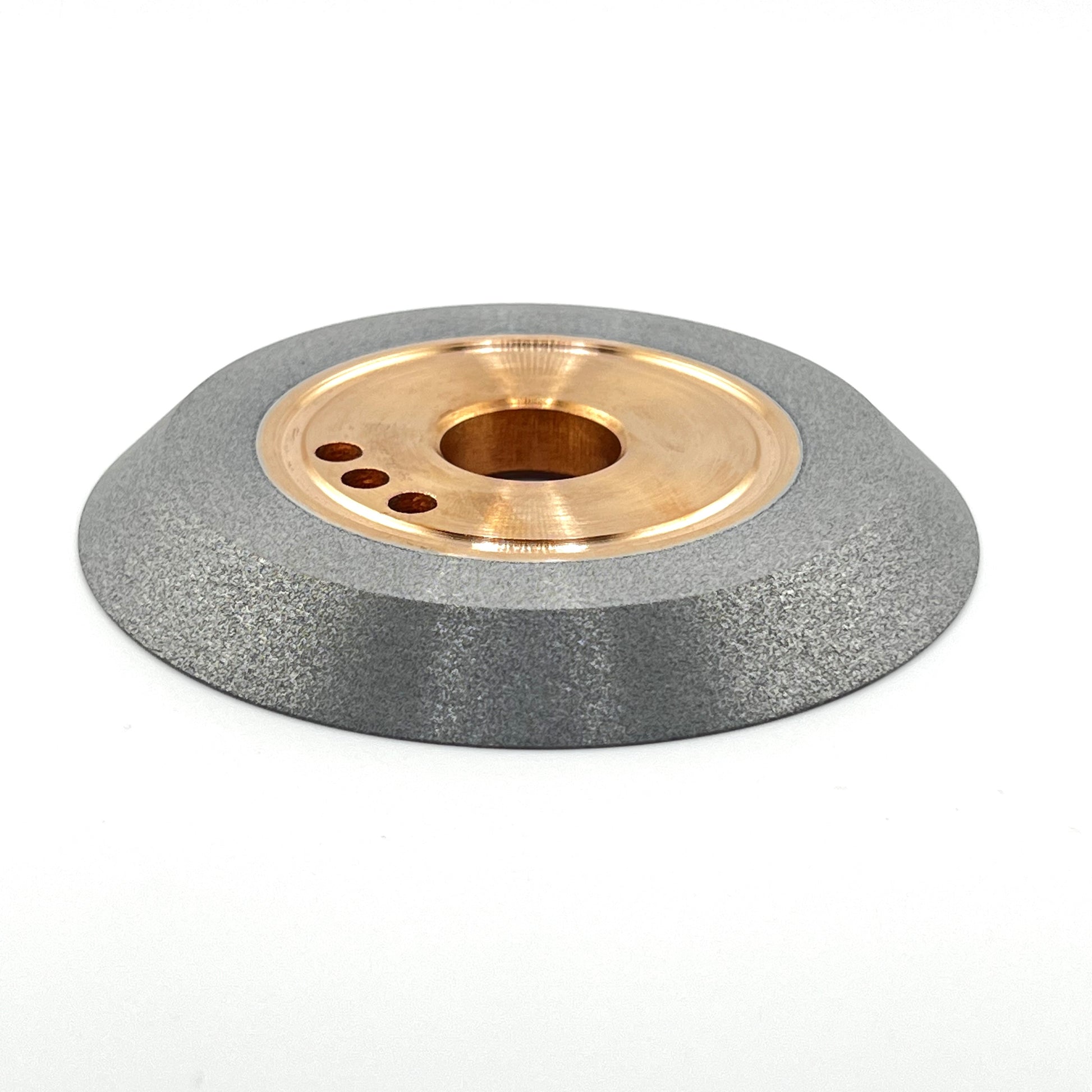

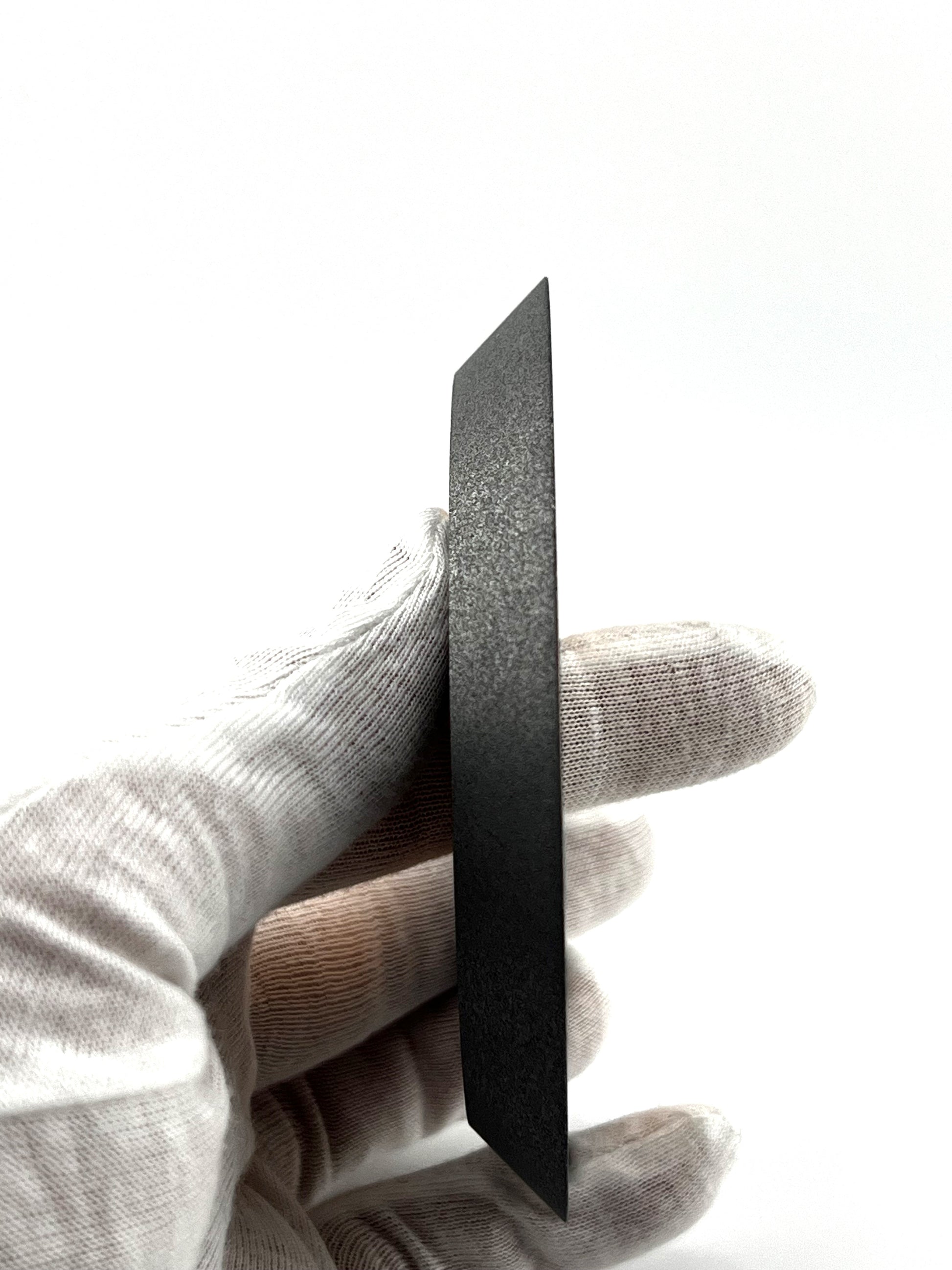

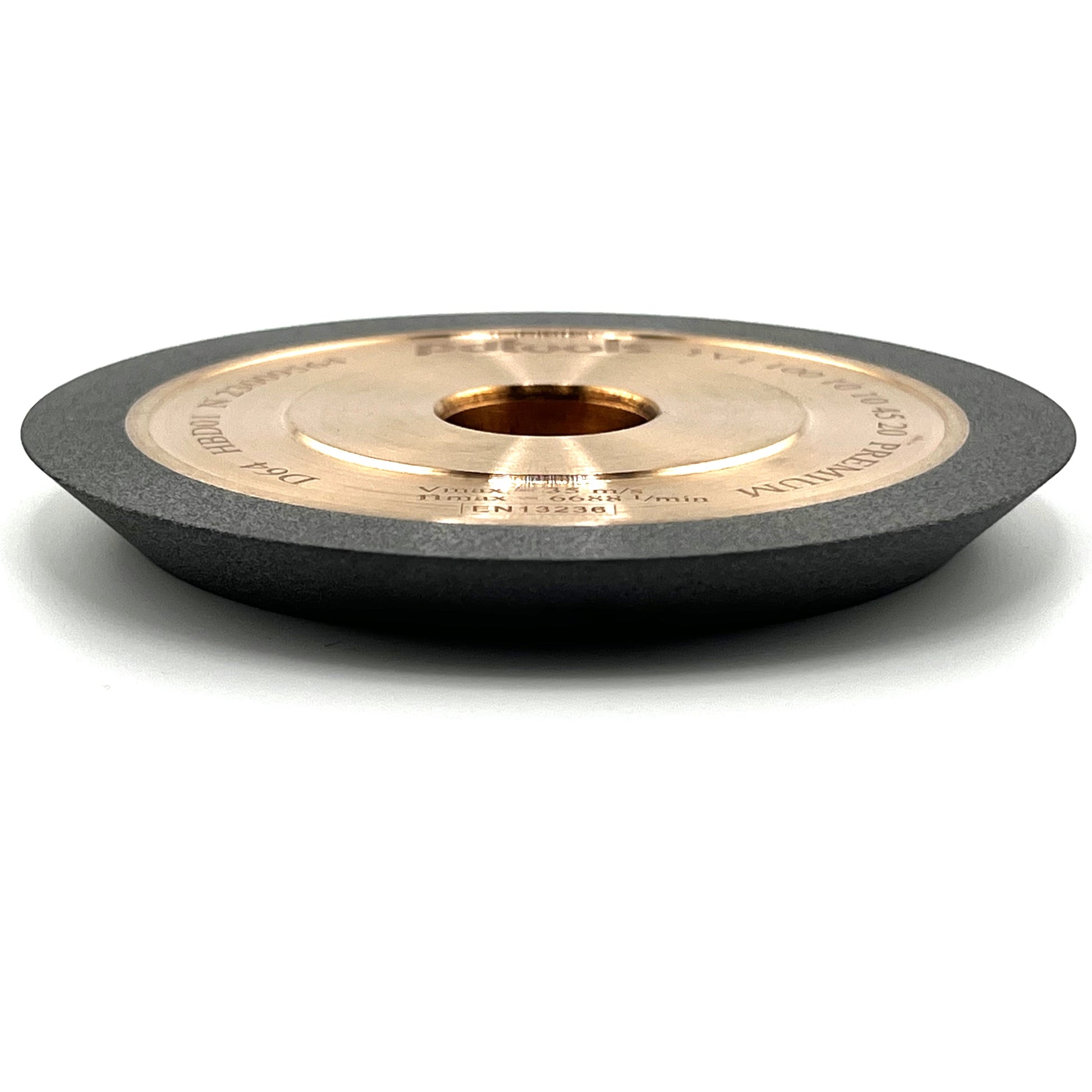

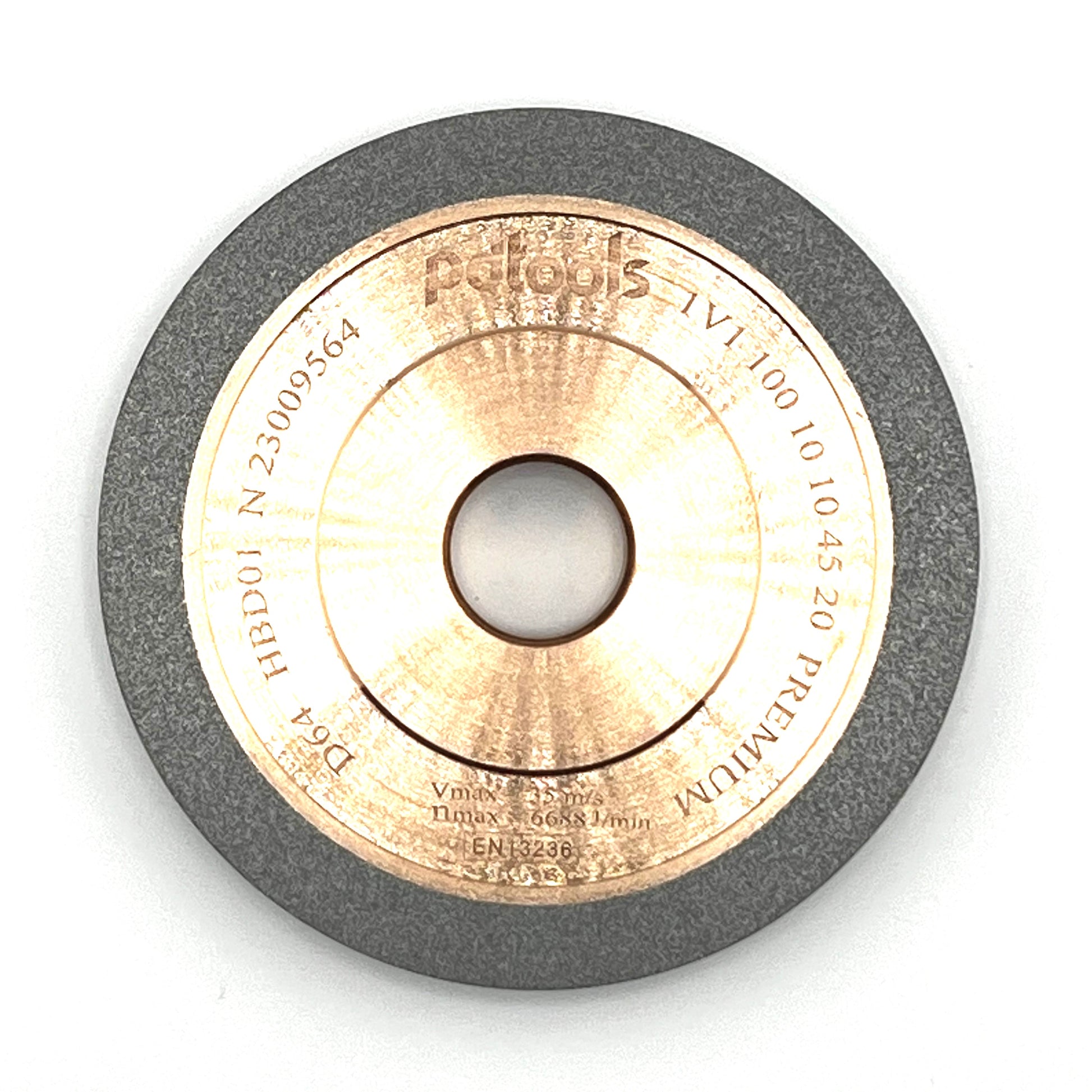

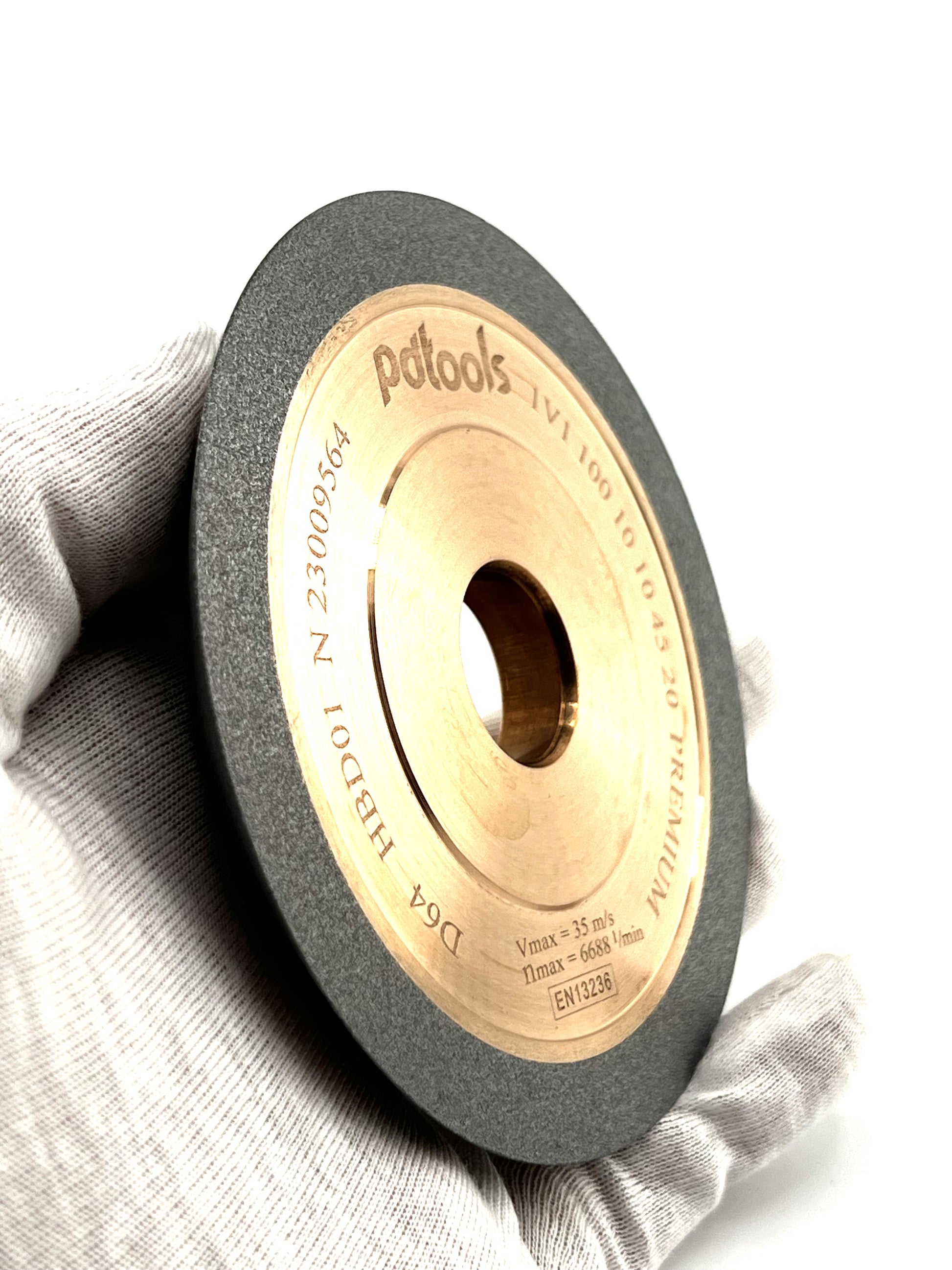

Diamond grinding wheel 1V1 100-10-10-45-20 D64 PREMIUM HBD01

Diamond grinding wheel 1A1 for milling tools manufacturing.

Specifications:

Diameter (D): 100mm(4'')

Thickness of diamond layer (T): 10mm(0.4'')

Height of diamond layer (X): 10mm(0.4'')

Angle: 45°

Mounting hole (H): 20mm(0.787'')

Grit size: D64 - 270 Grit

Bond: Hybrid bond

Coolant: Required

Quality line: PREMIUM
