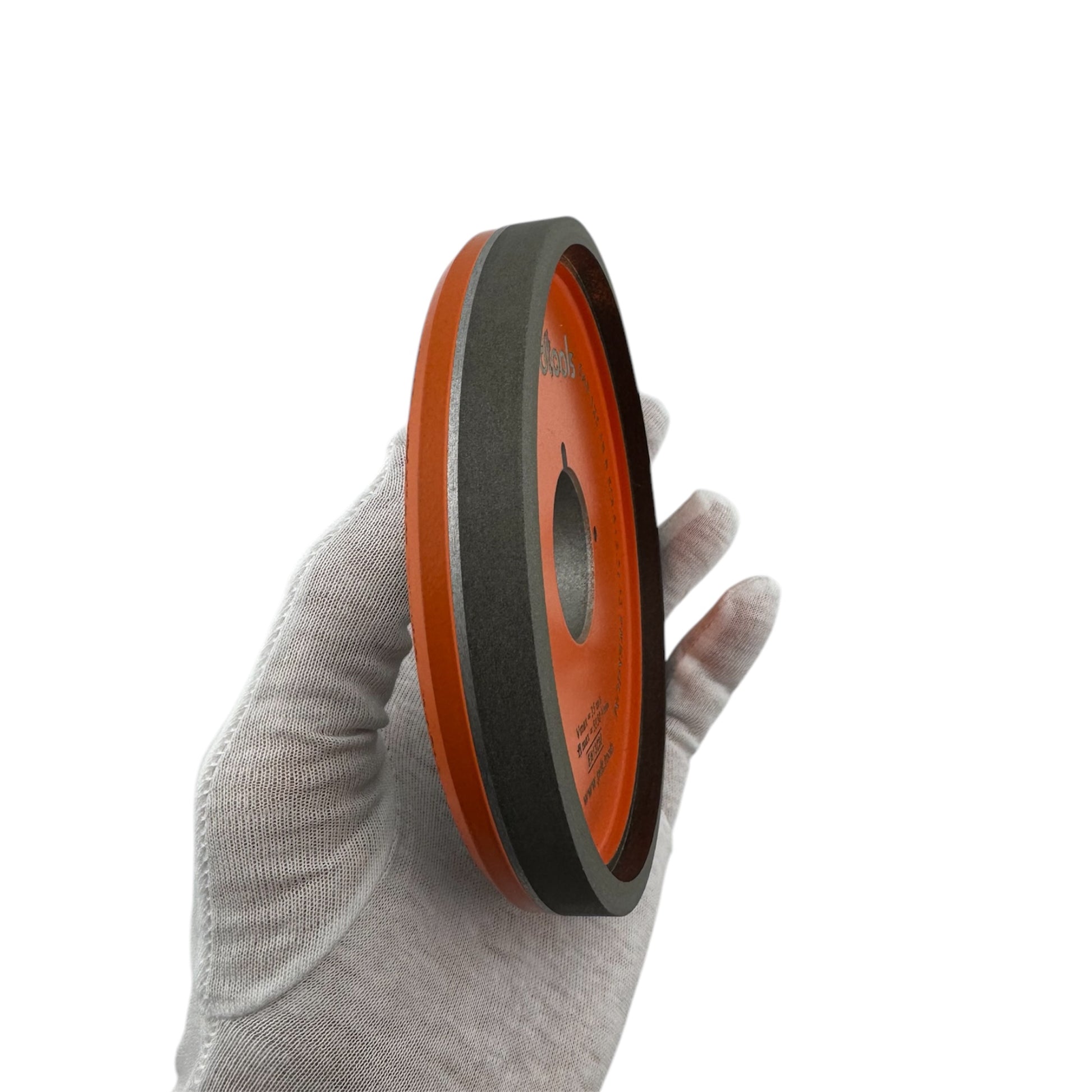

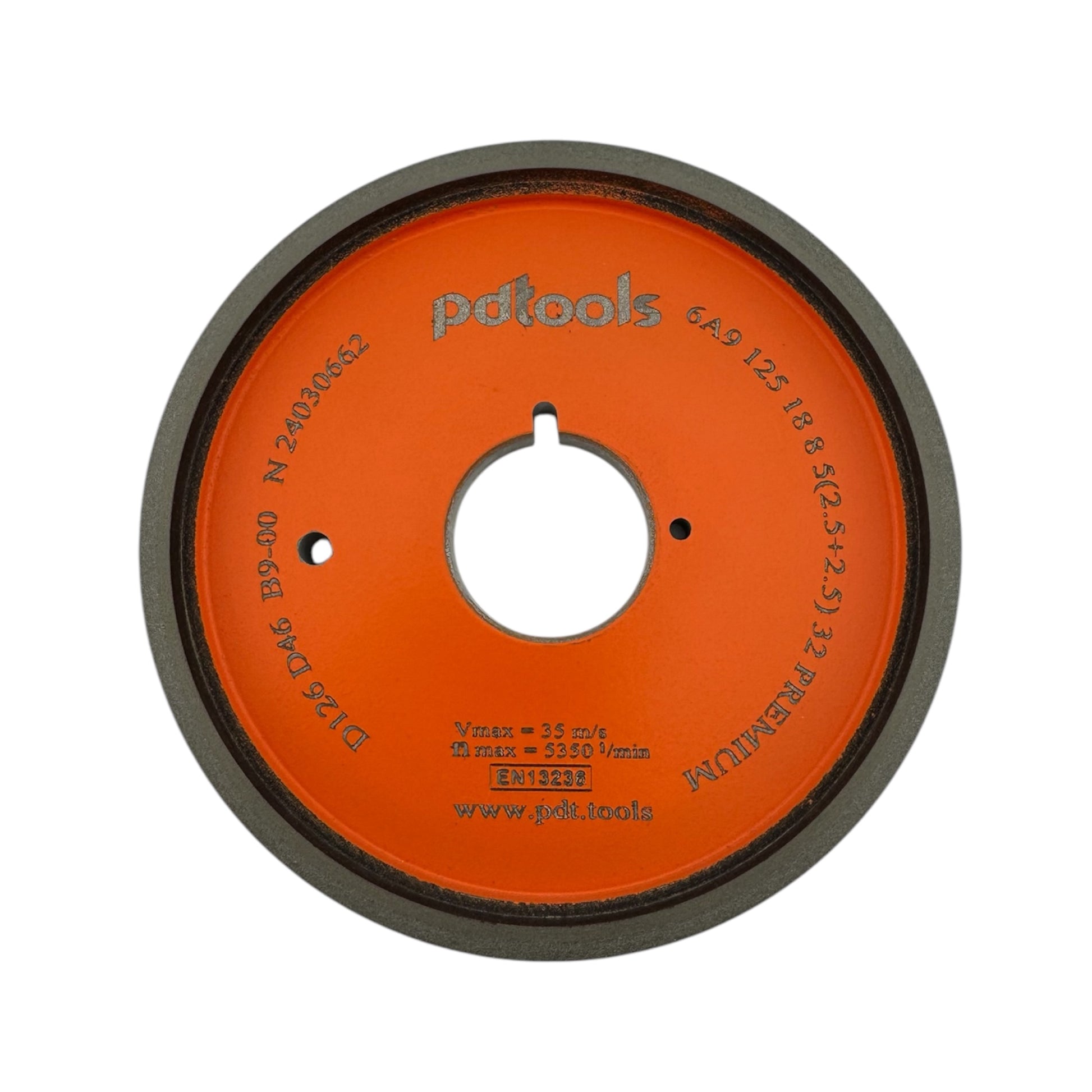

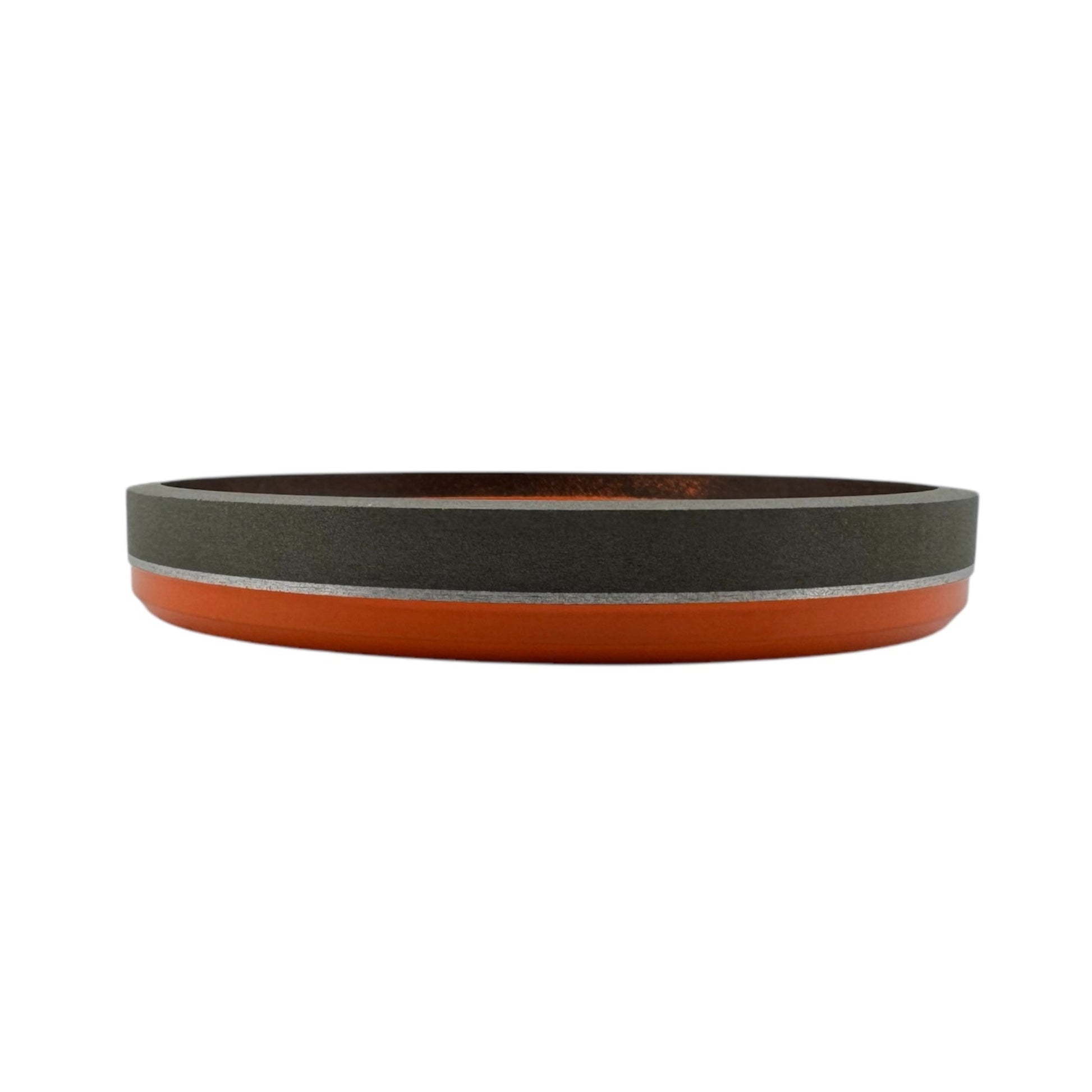

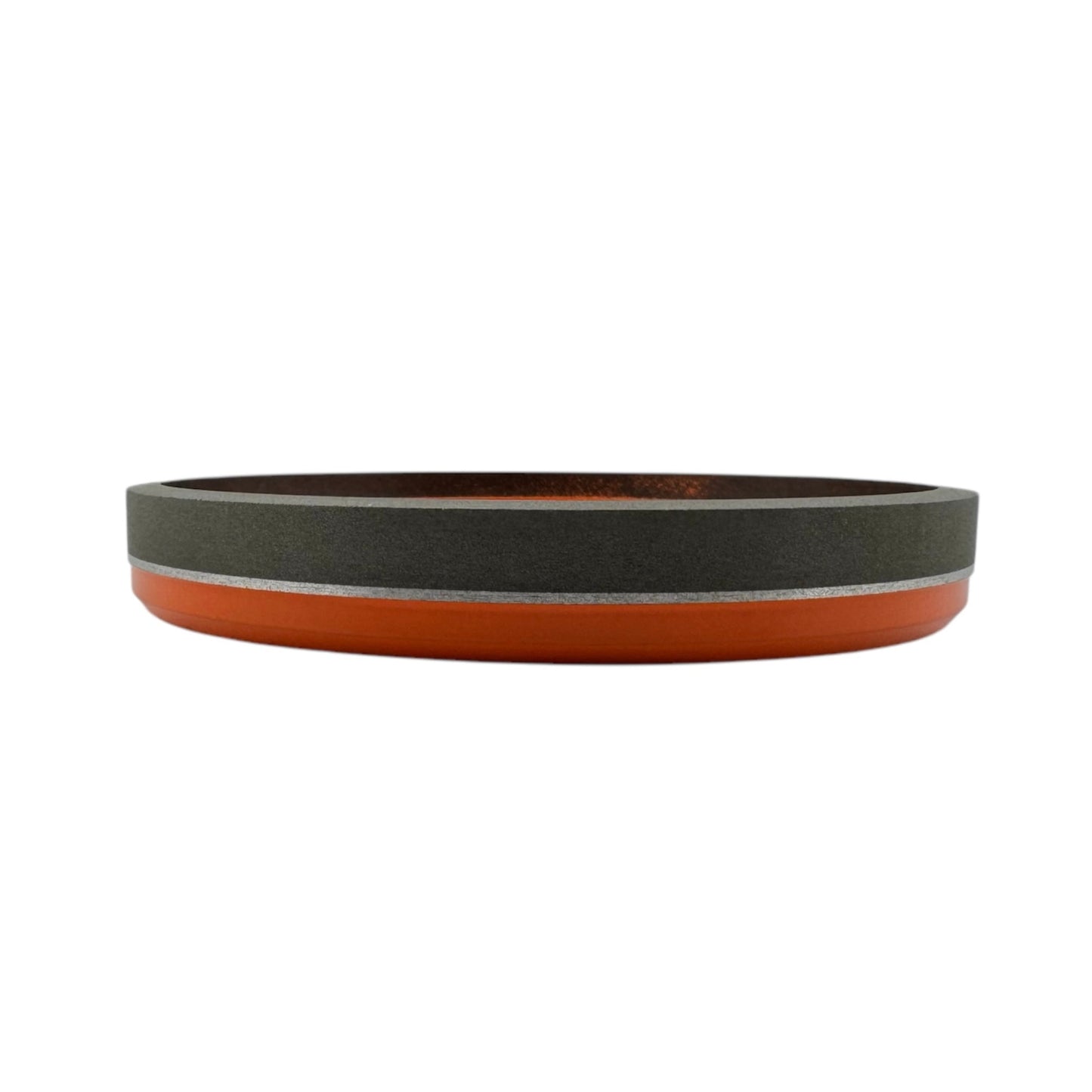

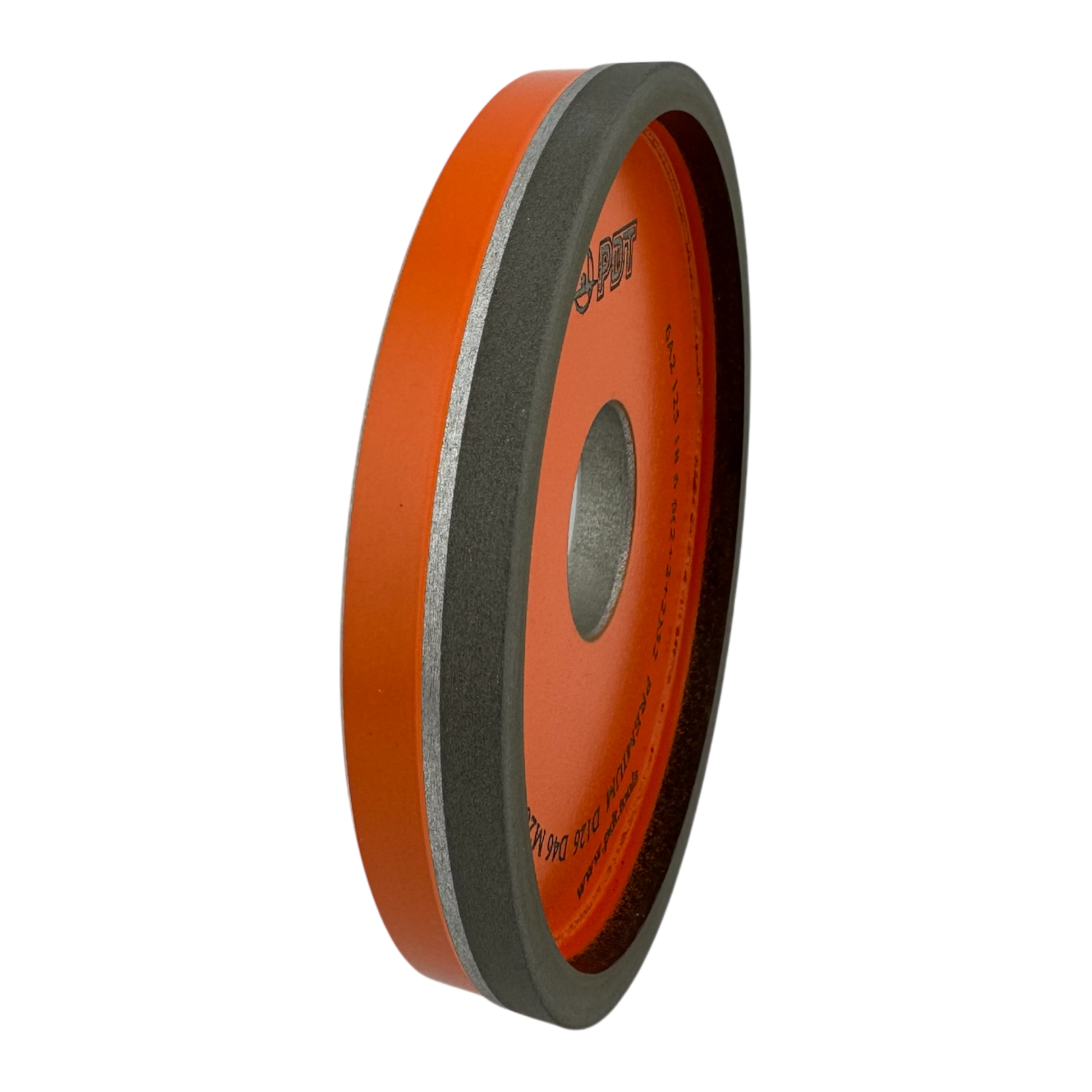

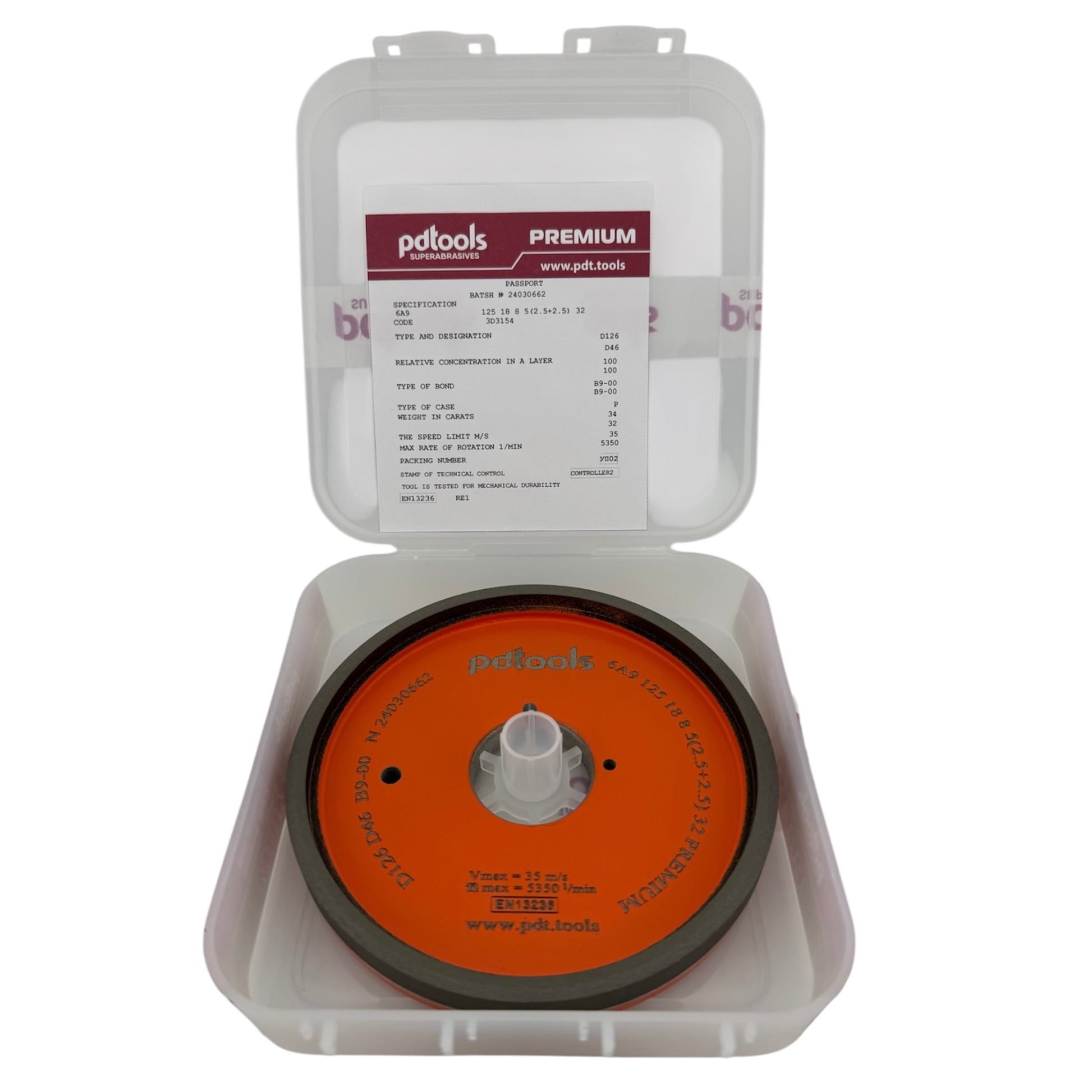

5" Double-Grit Diamond Grinding Wheel 6A9 140/400 Grit for Carbide Saw Teeth 32mm Bore | Keyway & Pin Hole

Premium double-grit diamond grinding wheel 6A9 designed for sharpening the back and side faces of carbide-tipped circular saw teeth in a single pass.

Specifications:

• Wheel Type: 6A9
• Designation: 6A9 125-18-5(2.5+2.5)-8-32
• Diameter (D): 125mm (5")
• Wheel Height (T): 18mm (0.709")
• Diamond Layer Width (W): 5mm (0.197") – 2.5+2.5mm (0.098+0.098")
• Diamond Layer Height (X): 8mm (0.315")
• Bore (H): 32mm (1.260")
• Bore Features: Keyway & Pin Hole
• Grit Size: FEPA D126/D46 – 140/400 Grit
• Bond Type: Resin (B9-00)
• Quality Line: Premium

Applications:

• Sharpening back and side faces of carbide-tipped circular saw teeth
• Two-grit grinding in a single pass
• Industrial saw sharpening

Compatibility:

Compatible with Vollmer and similar CNC saw sharpening machines with keyway and pin hole spindle configuration.

Features:

• Keyway and pin hole for secure and precise mounting
• Double-grit design for roughing and finishing in one pass
• High-performance diamond layer for consistent results
• Suitable for CNC grinding machines
• Stable operation and long service life
• Fast shipping from US stock

Coolant:

Coolant required. Oil-based coolant recommended, water-based coolant permissible.
