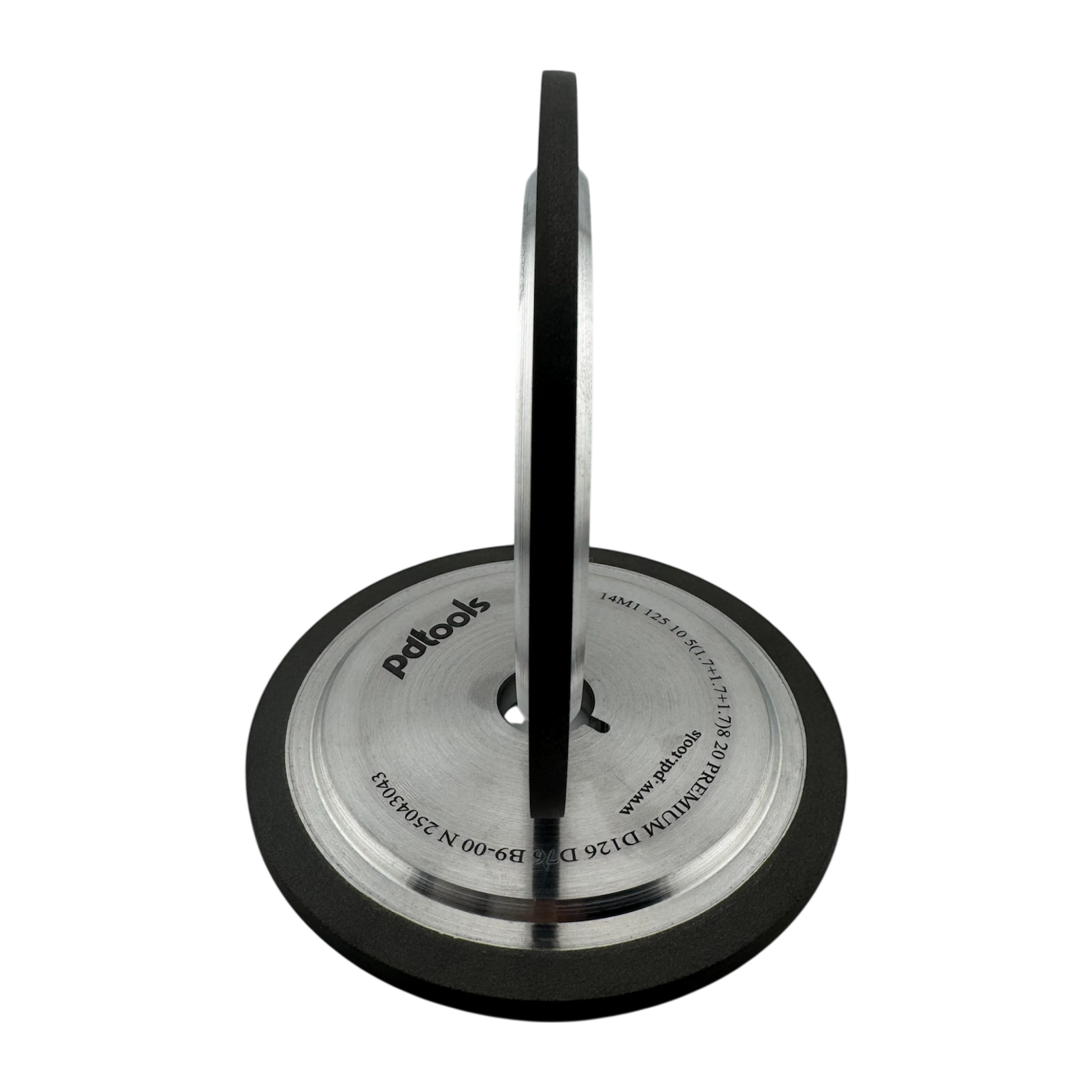

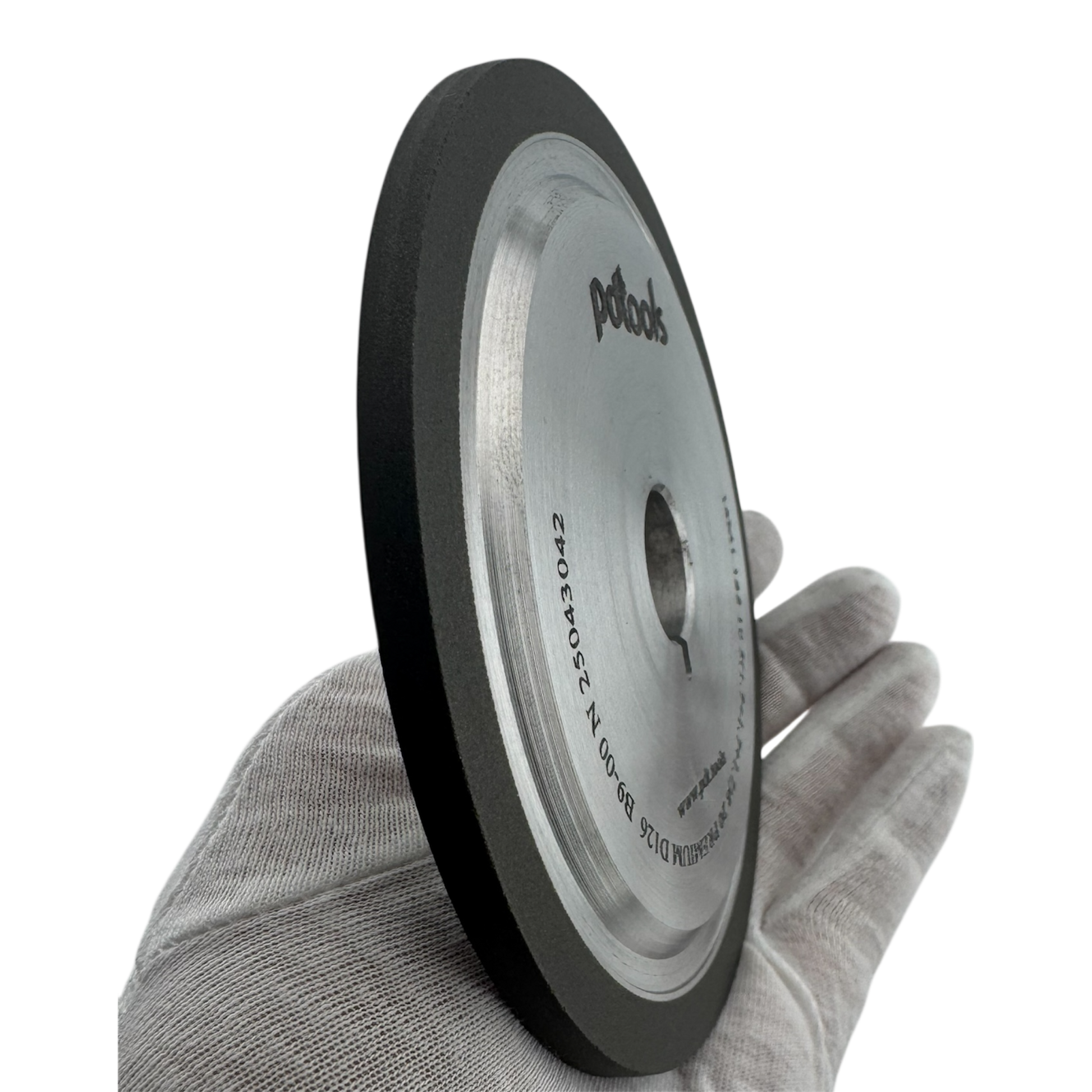

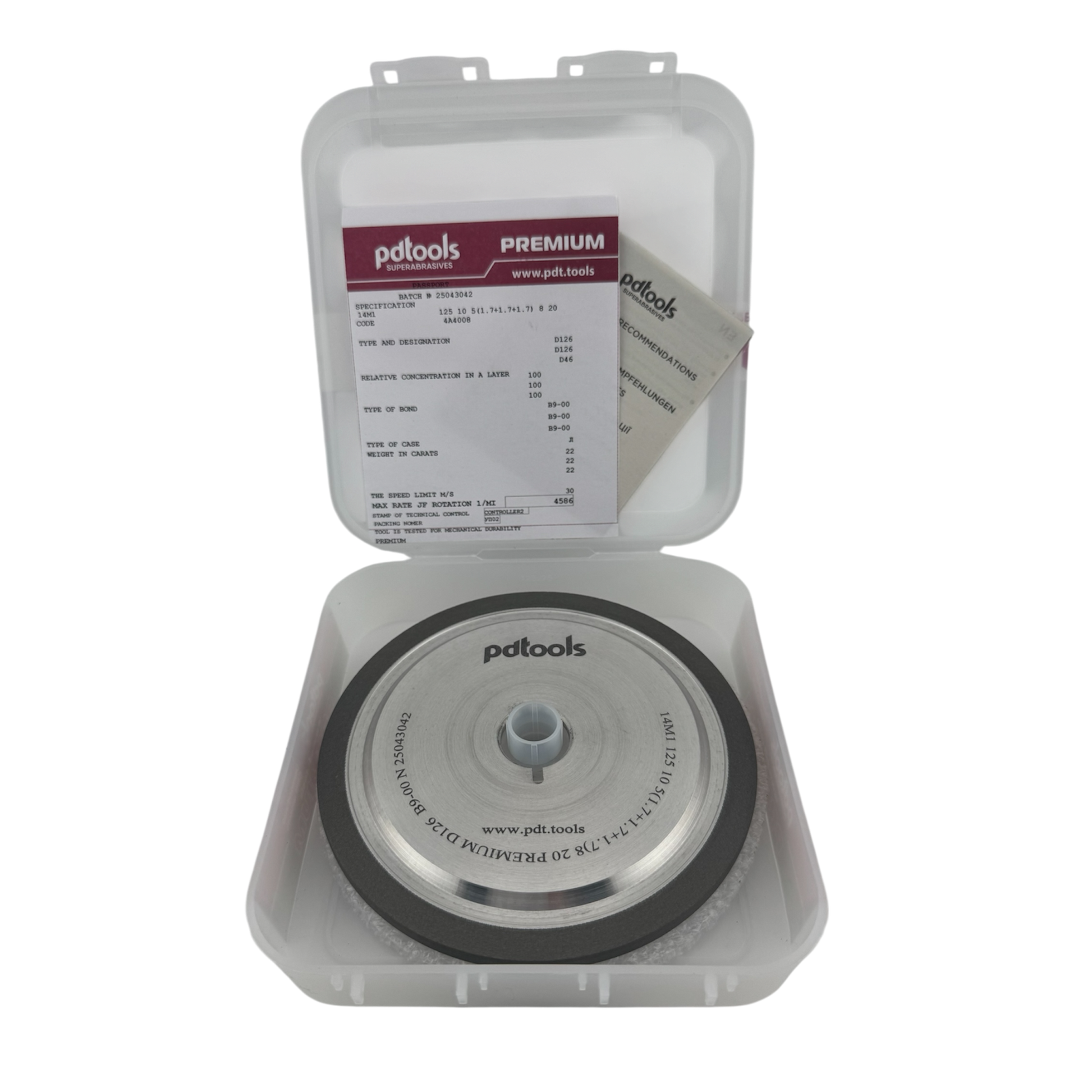

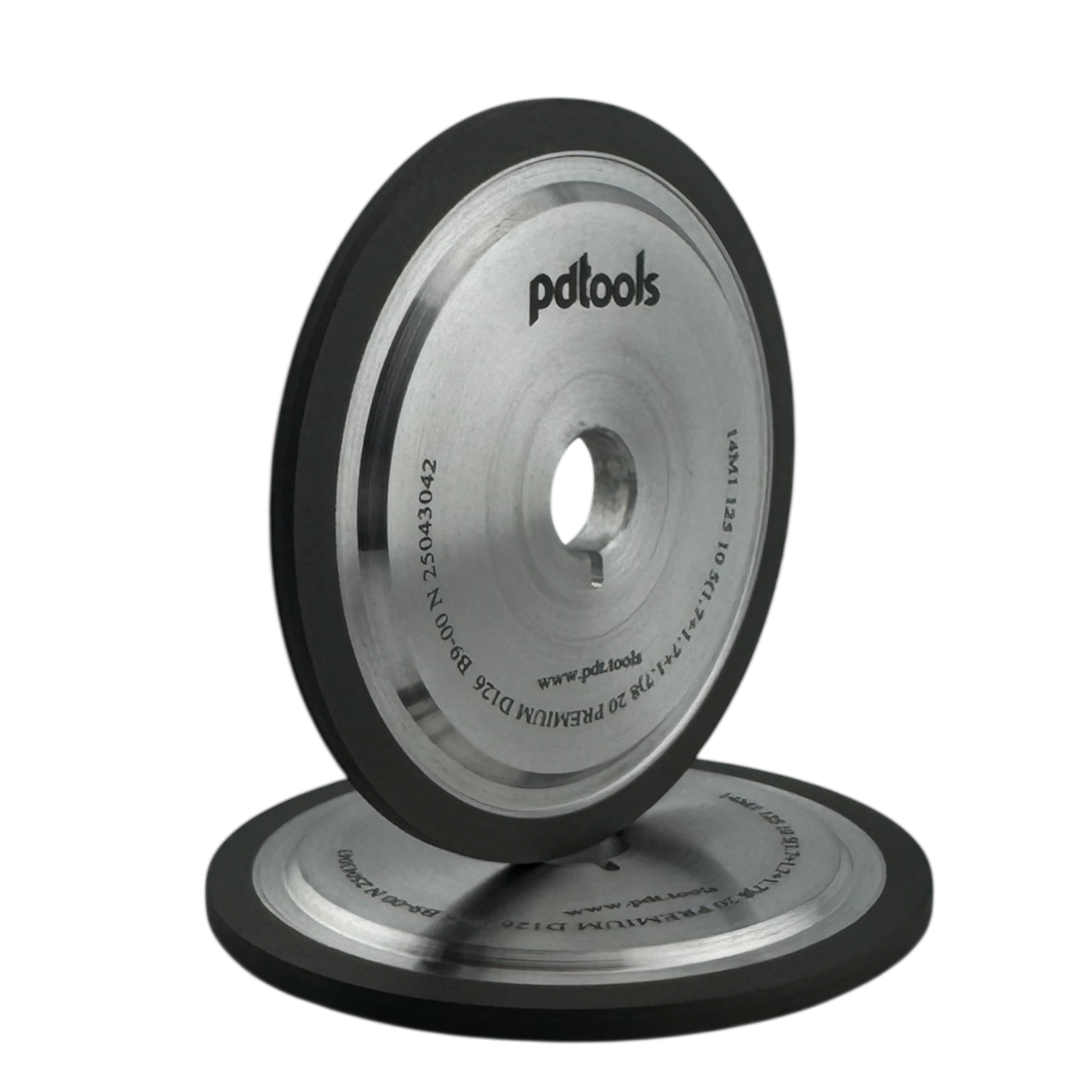

5" Diamond Grinding Wheel Double-Grit 14M1 D126/D126/D46 - Premium | Keyway

Premium Triple Layer Double-Grit Diamond Grinding Wheel 14M1 with Keyway

Triple layer diamond grinding wheel 14M1 for sharpening the back and side faces of teeth. Features two layers of D126 grit and one layer of D46 grit for versatile grinding performance.

Technical Specifications:

• Wheel Type: 14M1
• Designation: 14M1 125-10-5(1.7+1.7+1.7)-8-20
• Diameter (D): 125mm (5 inches)
• Height of Diamond Wheel (T): 10mm (0.394")
• Width of Diamond Layer (U): 5mm (0.197") - 1.7+1.7+1.7mm (0.066+0.066+0.066")
• Height of Diamond Layer (X): 8mm (0.315")
• Mounting Hole (H): 20mm (0.787")
• Keyway: Yes
• Grit Size: D126/D126/D46 - 120/120/400 Grit
• Bond Type: Resin bond
• Quality Line: Premium

Application:

Designed for sharpening the back and side faces of teeth. Coolant required during operation.

Features:

• Premium quality for professional applications
• Suitable for CNC grinding machines
• Fast shipping from US stock
